Fully Automatic T-Shirt Bag Making Machine (120pcs/min×2)
Request a Quote
Suitable for making and printing shopping bags made of HDPE / LDPE
Video
This fully automatic T-shirt bag making machine is frequently utilized in the production and printing of HDPE or LDPE film to make plastic shopping bags. The plastic bag making machine is equipped with a PLC control system, a double servo motor and a touch screen to assist operator in accomplishing processes of feeding, sealing, cutting, punching holes and transferring via one pass. This T-shirt bag making machine is highly automated and beneficial for financial gain.
Technical Parameters
| Model | RGHQ-350X2 | RGHQ-450X2 |
| Max. sealing and cutting width (mm) | 300*2 | 400*2 |
| Max. sealing and cutting length (mm) | 650 | 650 |
| Product thickness (mm) | 0.015-0.035 | 0.015-0.035 |
| Bag making speed (pcs/min) | 80-120*2 | 80-120*2 |
| Air pressure (kg/cm2) | 5 | 5 |
| Power (kW) | 7 | 9 |
| Weight (kg) | 1400 | 1600 |
| Dimension (m) | 6*1.4*1.6 | 6*1.4*1.6 |
Application
This fully automatic T-shirt bag making machine is suitable for making and printing plastic shopping bags for supermarkets, shopping malls, retail stores, convenience stores, and more.
Details
- Unwinder

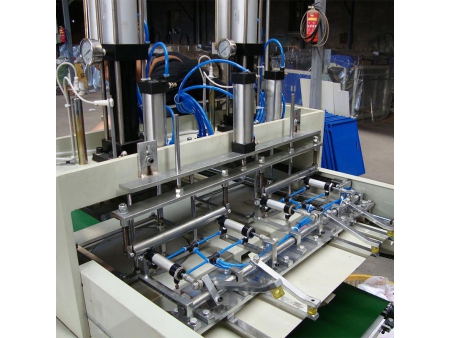

- Sealing and Cutting Units
- Punching Unit
