Low-E Glass Coating Machine
Request a Quote
Optional Color:
Northglass horizontal architectural glass coating machines mainly produce Low-E coated glass, solar-control glass, AR film, etc. by using magnetron sputtering method depositing different kinds of materials on the substrate.
Technical Features:- The identical 795mm design of vacuum compartments enables users to exchange the location of the pump, gas separation and cathode compartments freely, thus to improve process flexibility.
- New design of the gas separation device avoids gas drifting between cathode compartments and achieves better gas separation effect.
- The extruded aluminum supporting tube makes the magnet and its yoke isolate from the cooling water to avoid the change of the magnetic field due to soaking in the water for a long time.
- Equipped with 5-9 manifold auxiliary process gas system and each could be different as the process requirement.
- High precision conveying control can be ensured by servo motors.
- Reducing the volume of enter and exit chambers to improve efficiency and cut down cost.
- An integrated cathode lid achieves a perfect combination by putting gas manifold, controllers, connections for power supply and various media in a "box" to make the process configuration more flexible.
- Every cathode is equipped with an independent control system.
- The one-piece lid design can make the mechanical and hydraulic lifting easily, thus to achieve better automatic control.
- By using of advanced maglev turbo-molecular pumps and screw line pumps to prevent pollution from the backflow oil and makes it more reliable and efficient.
| SE2540H Series | SE3300H Series | |

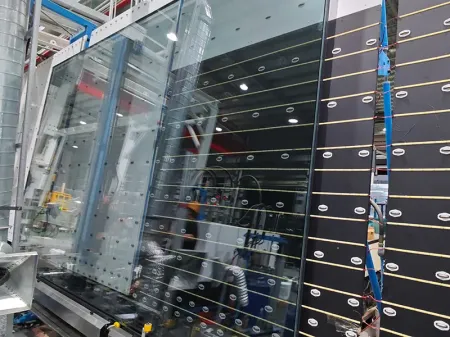

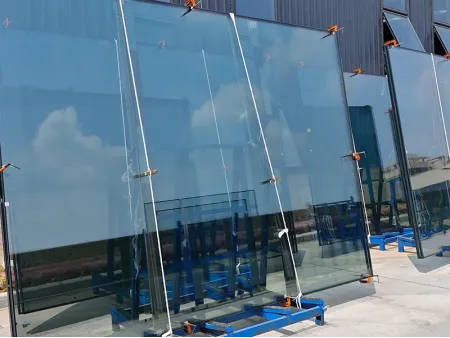

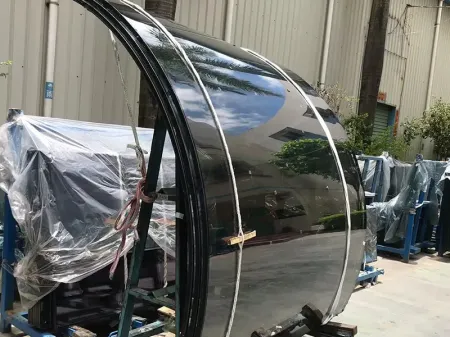

| Substrate | Float glass, tempered glass, laminated glass, etc. | |
| Substrate size | Max. 2540 × 3660mm (customizable) | Max. 3300 × 6000mm (customizable) |
| Substrate thickness | 3-19mm (customizable) | |
| Cycle time | > 20s | > 30s |
| Ultimate vacuum | < 2E-6mbar | |
| Effective running time | > 95% | |
| Film uniformity | ≤ ± 1.0% | |
