Request a Quote

As an important oil hose in the marine industry, the submarine hose is suitable for use in connecting with subsea manifolds, and main submarine pipelines fitted in the hose strings on the single buoy mooring system. This subsea hoses are available with single carcass and double carcass design.

Standards
Our submarine hoses are designed and manufactured in accordance with OCIMF standard, and are certified by ISO 9000:2001 quality management system.

Features
Rated working pressure: 15, 19 or 21 bar
Safety factor: 5:1
Electrical continuity: electrically continuous

Technical Parameters
(Following data set under rated working pressure of 15, 19 or 21 bar)

Inner Diameter
mm
Weight in Empty Air
kg
Outside Diameter
mm
Min. Bending Radius
m
9.1m 10.7m 12.2m A B
150(6") 372/144 415/161 458/178 368 254 0.6(2.0')
200(8") 505/217 561/242 617/267 471 311 0.8(2.8')
250(10") 681/282 762/311 843/340 471 368 1.0(3.3')
300(12") 942/346 1052/381 1162/416 581 471 1.2(4.0')
400(16") 1389/592 1559/659 1729/726 697 581 1.6(5.3')
500(20") 1840/837 2072/928 2304/1019 799 697 2.0(6.6')
600(24") 2704/1254 3030/1399 3356/1544 946 799 2.4(8.0')

Note: Specifications can be made upon request.

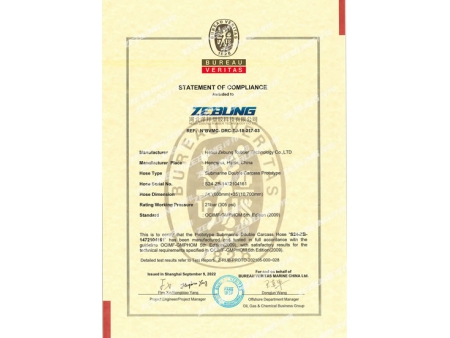

Certificates

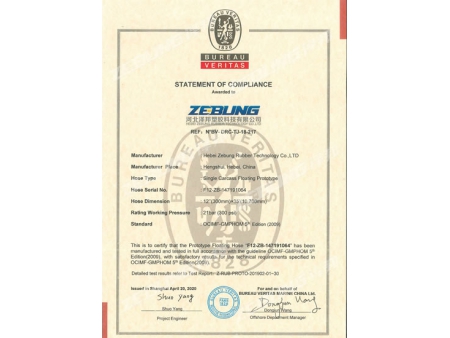

  • BV Test Report (Single Carcass Floating Prototype-DN300mm)
  • BV Test Report (Single Carcass Floating Prototype-DN600mm)

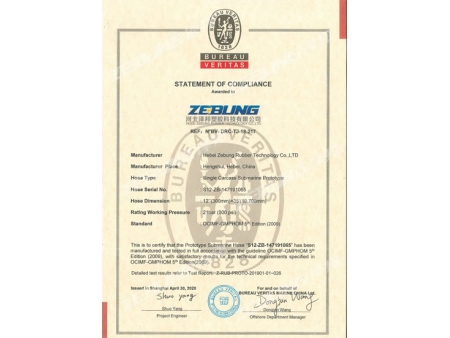

  • BV Test Report (Single Carcass Submarine Prototype-DN300mm)

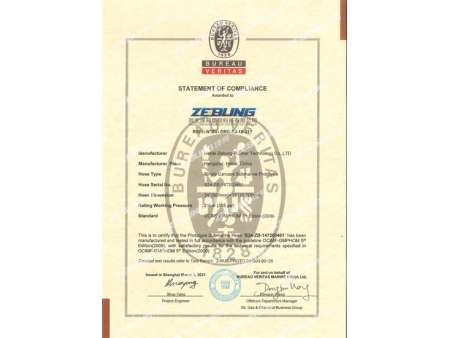

  • BV Test Report (Single Carcass Submarine Prototype-DN600mm)
  • BV Test Report (Submarine Double Carcass Prototype-DN600mm)

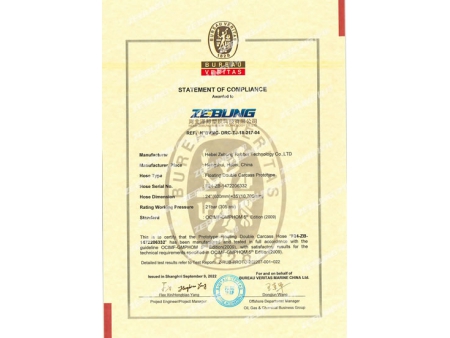

  • BV Test Report (Floating Double Carcass Prototype-DN600mm)
