SSB Triple-layer Forming Fabric for Printing & Writing Paper Making (5-shed/8-shed/10-shed) Manufacturer

SSB Triple-layer Forming Fabric for Printing & Writing Paper Making (5-shed/8-shed/10-shed)

Request a Quote

View All: http://forming-dryerfabrics.com/1-2-1-writing-paper.html

Paper machine clothing for forming section in paper machinery

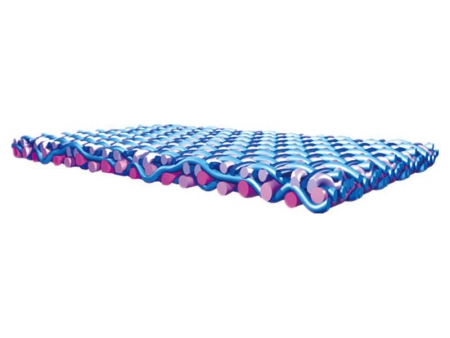

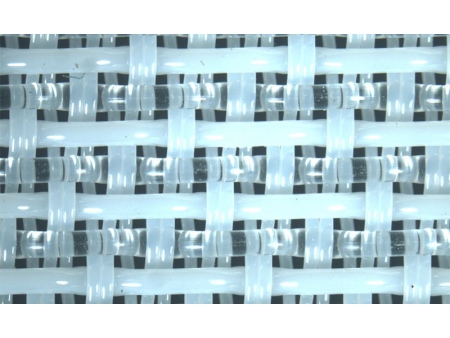

This SSB triple-layer forming fabric is designed primarily for the production of printing and writing paper in large quantity. The SSB (sheet support binding) structure design with double MD yarns and two CD yarns plain woven on the sheet side forms a very thin structure allowing good runnability in high-speed paper machines. This compact design provides a very high fiber support index, resulting in maximum planarity, smoothness and minimum wire mark.

Get in Touch

Enhanced drainage capability is also guaranteed by the unique structure of this design. Optimum life potential can be achieved by tailor-made wear-side wefts in terms of diameters, density and amount of sheds (5-shed, 8-shed and 10-shed available).

Features

Smoother and more printable surface properties provided by the very fine sheet-side surface compared to older designs, satisfying the strictest demands for paper characteristics;
Improved retention and reduced wire marks from better sheet support of this SSB structure;
Excellent drainage and thanks to the open structure and of this unique design;
High potential life due to excellent dimensional stability;
Consistently accurate CD moisture profile delivered by the SSB triple-layer structure;
Good runnability for fast production, enabling wide application for all paper machines.
