2.5-layer Forming Fabric for Printing & Writing Paper Making (5-shed/8-shed/10-shed)

2.5-layer Forming Fabric for Printing & Writing Paper Making (5-shed/8-shed/10-shed)
2.5-layer Forming Fabric for Printing & Writing Paper Making (5-shed/8-shed/10-shed)
2.5-layer Forming Fabric for Printing & Writing Paper Making (5-shed/8-shed/10-shed)
Request a Quote

Paper machine clothing for forming section in paper machinery

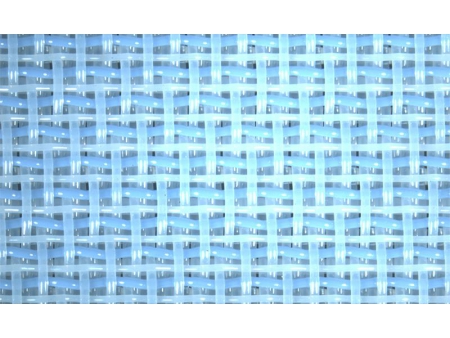

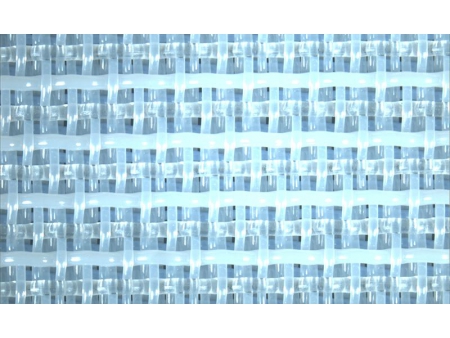

This 2.5-layer forming fabric is featured by a double-layer structure of weft, with weft ratio of 2:1. Developed for the forming section in paper machinery for of printing and writing paper machines, our 2.5-layer forming fabric introduces high fiber support index (FSI) which results from an improved surface-yarn density. This allows better sheet-side smoothness as well as improved retention compared to a 2-layer design. This construction also allows good drainage.

Get in Touch

When it comes to mass production, 5 sheds in cross machine direction in this particular design provide satisfying fabric durability, with even longer lifetime guaranteed options available (8-shed and 10-shed). Tailor-made 2.5-layer forming fabrics can be realized through changes on diameters and densities of wefts.

Features
  • Better sheet-side smoothness as well as improved retention from high FSI;
  • Optimum wear resistance achieved by custom-made design of weft diameter and density;
  • Applicable in all paper making machinery with varying speed ranges for different paper grades.
