All-Electric Off-Road Dump Truck
Rigid haul truck with 4WD electric drive
Key Parameters
- Engine power 500/800kW
- Rated payload 60-90t
- Dump body capacity 33-50m³
Applications
Transportation in large and medium-sized open-pit mines
| Model | |||
| Kerb weight (t) | 30 | 35 | 45 |
| Rated payload (t) | 60 | 70 | 90 |
| Battery (kWh) | 396 | 422.87/396 | 528/770/800 |
| Drive power (kW) | 500/800 | ||
| Axle load (t) | 20 35 35 | 25 40 40 | 30 50 50 |
| Cab | 4th generation left hand cab | ||
| Suspension system | Front hydropneumatic suspension/rear leaf spring suspension | ||
| Steering system | Fully hydraulic steering emergency steering | ||
| Tire | 14.00R25 | 16.00R25 | 480/95R29 |
| Dump body capacity (m³) | 33 | 40 | 50 |
| Max. speed (km/h) | 40 | ||
| Drive mode | 6×4 | ||
| Wire control system | Optional | ||
- Our 60-90 ton all-electric off-road dump trucks use advanced battery swapping technology, with a swap time of less than 6 minutes and a success rate of over 98%.
- The dump trucks and stations are separate, and both batteries and stations can be leased, thus significantly reducing upfront investment.
- These trucks feature battery swapping reminders and cloud-based dispatch functions, enhancing coordination between trucks and stations.
- With uninterrupted power shifting and proprietary VCU and automatic weighing systems, our trucks provide seamless operations and accurate load measurements.
- Our all-electric dump trucks, environmentally friendly, present zero emissions and zero pollution.
- Equipped with a dual-motor drive system, multi-speed automatic transmission, and standardized lithium iron phosphate battery system, our trucks can handle steep heavy-load uphill climbs and various conditions, including high altitude and cold climates.

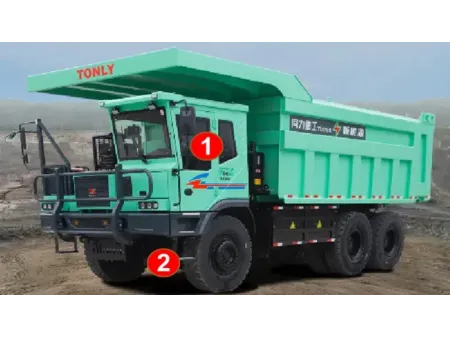

Featuring a rigid frame structure, the wide-body offset cab presents excellent resistance to rolling, falling and collision. The rear door is opened backwards, allowing the operator to escape the cab quickly in case of accidents. Also, the forward-tilted front windshield provides a better view and effectively prevents falling objects from smashing the glass and causing damage to the operator.
The fully hydraulic steering gear can output a large steering torque, enabling flexible operation and high reliability.

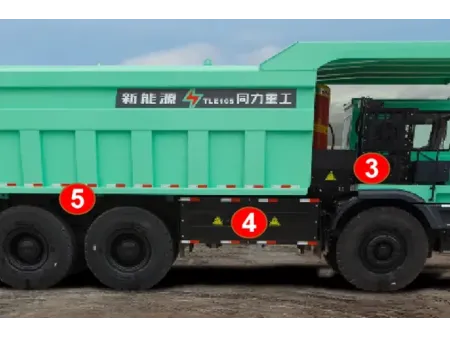

The power drive system is composed of dual motor and automatic transmission, enabling fast power response, automatic shifting without power interruption, convenient operation and excellent ride comfort.
The industry's most mature LFP power battery is safe and reliable in operation, with long cycle life.
wide body vehicle is made of high-strength steel plate by multiple times of rolling, featuring high bearing capacity, strong impact resistance and long service life. It is adaptive excellently to working conditions, and can absorb and attenuate impact load to protect the bearing system.
The integrally framed dump body is made of high-strength and wear-resistant steel plates, with strong resistance to impact and deformation, good wear resistance and long service life.
OTR tire is equipped for different working conditions, with good adaptability to working conditions and long service life.
The mining-purpose hydraulic oil cylinder is high in lifting capacity, efficiency, safety and reliability.
The sliding-type front suspension with twin shock absorber has higher bearing capacity, good buffer performance, and high reliability.The leaf spring balance rear suspension is equipped with dual V-shaped track bar guiding mechanism, which has high bearing capacity and excellent stability.
-
Aggregate Transportation from Taisheng Quarry
- Location: Xinhui, Jiangmen
- Annual extraction: 30 million tons
- Site conditions: heavy-load downhill (transport distance: 2km)
- Recommendations: TL875C, TL885F, TLE105
-
Guangxi Xindongyun's Aggregate Transportation Project
- Location: Laibin, Guangxi
- Annual extraction: 10 million tons
- Site conditions: 90% heavy-load downhill, 10% heavy-load uphill
- Maximum slope: 16%
- Transport distance: 1.5-2.5 km per trip
- Recommendations: TL875, TLE105
