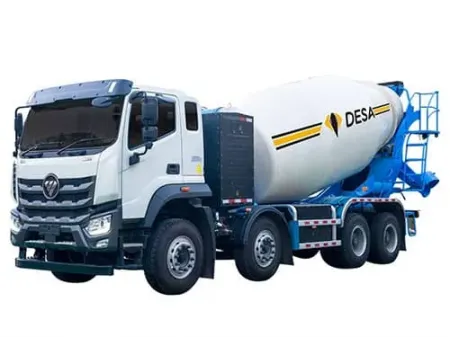

All-Electric Concrete Mixer Truck (Foton Chassis)
Request a Quote
The Foton all-electric concrete mixer truck delivers a zero-emission, regulation-compliant solution for sustainable construction projects. It combines reliable power with energy efficiency, ensuring stable performance across demanding conditions while lowering operating costs. Designed as modern mixing and conveying equipment for concrete plants and mixing stations, it eliminates road pollution and supports cleaner, more efficient operations.
- Capacity 8-12m³/18T
- Water Tank Capacity 600-1000L
Features
- Equipped with a 350 kWh battery, the truck offers a driving range of up to 300 km, eliminating the need for exhaust certification and meeting stringent environmental standards.
- Powered by a Tebco motor paired with a 6.73 high-ratio rear axle, the truck is capable of tackling 30% gradients, ensuring dependable operation in urban and mountainous environments.
- The chassis is built from T980 high-strength steel to support heavy loads, while aluminum components reduce unladen weight by 12%, providing a durable lightweight design while improving efficiency and payload capacity.
- The battery reaches 80% charge in just 1.5 hours, aligning with driver rest cycles. With an all-condition attendance rate above 90%, the truck is designed to keep projects moving on schedule with fast charging for maximum uptime.
Specifications
| Vehicle | Truck Type | Auman Planetary | Auman Planetary | Auman Planetary |
| Vehicle model | | | | |
| Gross weight (kg) | 31000 | 31000 | 31000 | |
| Curb weight (kg) | 12700 | 13240 | 15900 | |
| Vehicle dimensions (mm) | 10150×2545×3950 | 9940×2530×3980 | 10640×2530×3980 | |
| Chassis | Power type | All-electric | All-electric | All-electric |
| Truck body | MA5 (Auman Planetary) | MA5 (Auman Planetary) | MA5 (Auman Planetary) | |
| Axle configuration | 8×4 | 8×4 | 8×4 | |
| Wheelbase (mm) | 2000 2850 1350 | 2000 2850 1350 | 2000 3000 1400 | |
| Motor model | TZ368XSSF-SZF601 | TZ368XSSF-SZF601 | TZ400XSTPG46 | |
| Number of motors | Single motor | Single motor | Single motor | |
| Motor brand | FAST | FAST | Top Gear | |
| Charging | Rechargeable | Rechargeable | Rechargeable | |
| Battery capacity (kWh) | 282 | 282 | 350 | |
| Battery manufacturer | EVE/CATL | EVE/CATL | EVE/CATL | |
| Transmission | FS4E200-2 | FS4E200-2 | TS-0425C | |
| Transmission material | Aluminum | Aluminum | Iron | |
| Transmission manufacturer | FAST | FAST | Top Gear | |
| Front axle | 5t (lightweight front axle) | 5T | 6.5t | |
| Rear axle | 400L single-stage reduction dual-drive axle | 440/10T | 270/13T | |
| Rear axle ratio | 5.143 | 5.571 | 6.73 | |
| Brake | Drum brake/drum brake | Drum brake/drum brake | Drum brake/drum brake | |
| Suspension (leaf spring) | 3/3/3 | 3/3/5 | 10/10/12 | |
| Frame (H×W×T) (mm) | 286×80×(7 4) | 286×80×(8 4) | 305×90×(8 5) | |
| Subframe | Stringer (longitudinal beam) | Size: 140×90×8 Material: T700 | Size: 140×90×8 Material: T700 | Size: 140×90×8 Material: T700 |
| Front bracket | BS700 T=8 | BS700 T=8 | BS700 T=8 | |
| Rear bracket | BS700 T=6 | BS700 T=6 | BS700 T=6 | |
| Reducer | Top Gear | Top Gear | Top Gear | |
| Drive | PanGood | PanGood | PanGood | |
| Water tank | Material: aluminum Capacity: 360L | Material: aluminum Capacity: 360L | Material: aluminum Capacity: 360L | |
| Second axel fender | Plastic | Plastic | Plastic | |
| Rear axle fender | Aluminum | Aluminum | Aluminum | |
| Mixing drum | Drum material | T980 T=3 | T980 T=3 | T980 T=3.5 |
| Blade material | T980 T=3 | T980 T=3 | T980 T=3 | |
| Effective capacity (m³) | 8 | 10 | 12 |
