All-Electric Off-Road Dump Truck
Rigid haul truck with 4WD electric drive
Key Parameters
- Engine power 500/800kW
- Rated payload 60-90t
- Dump body capacity 25-65m³
Applications
Transportation in large and medium-sized open-pit mines
| Model | |||
| Kerb weight (t) | 30 | 35 | 45 |
| Rated payload (t) | 60 | 70 | 90 |
| Battery (kWh) | 350/422.87 | 422.87 | 563/704 |
| Drive power (kW) | 500/800 | ||
| Axle load (t) | 20 35 35 | 25 40 40 | 30 50 50 |
| Cab | 4th generation left hand cab | ||
| Suspension system | Front hydropneumatic suspension/rear leaf spring suspension | ||
| Steering system | Fully hydraulic steering emergency steering | ||
| Tire | 14.00R25 | 16.00R25 | 480/95R29 |
| Dump body capacity (m³) | 33 | 40 | 50 |
| Max. speed (km/h) | 40 | ||
| Drive mode | 6×4 | ||
| Wire control system | Optional | ||
- Our 60-90 ton all-electric off-road dump truck series offers various models, all equipped with independent VCU and high-quality chassis configuration, using well-known domestic and international electric systems.
- These high-performance dump trucks adapt perfectly to various conditions, such as uphill and downhill, and are suitable for high altitude, cold, hot, and humid environments.
- Featuring all electricity power, zero emissions, and zero pollution, our electric dump trucks are highly environmentally friendly.
- Powered by a dual-motor drive system and a multi-speed automatic transmission, these off-road dump trucks are equipped with standardized lithium iron phosphate battery systems, providing high efficiency and excellent performance with reliable power and extended operational time.

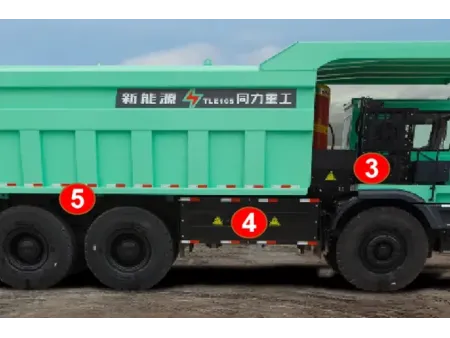

Featuring a rigid frame structure, the wide-body offset cab presents excellent resistance to rolling, falling and collision. The rear door is opened backwards, allowing the operator to escape the cab quickly in case of accidents. Also, the forward-tilted front windshield provides a better view and effectively prevents falling objects from smashing the glass and causing damage to the operator.
The fully hydraulic steering gear can output a large steering torque, enabling flexible operation and high reliability.
The power drive system is composed of dual motor and automatic transmission, enabling fast power response, automatic shifting without power interruption, convenient operation and excellent ride comfort.
The industry's most mature LFP power battery is safe and reliable in operation, with long cycle life.
The bolted chassis frame for wide body vehicle is made of high-strength steel plate by multiple times of rolling, featuring high bearing capacity, strong impact resistance and long service life.It is adaptive excellently to working conditions, and can absorb and attenuate impact load to protect the bearing system.
The integrally framed dump body is made of high-strength and wear-resistant steel plates, with strong resistance to impact and deformation, good wear resistance and long service life.
OTR tire is equipped for different working conditions, with good adaptability to working conditions and long service life.
The mining-purpose hydraulic oil cylinder is high in lifting capacity, efficiency, safety and reliability.
The sliding-type front suspension with twin shock absorber has higher bearing capacity, good buffer performance, and high reliability.The leaf spring balance rear suspension is equipped with dual V-shaped track bar guiding mechanism, which has high bearing capacity and excellent stability.
-
Vanadium Titano-Magnetite Mine in Panzhihua
- Location: Panzhihua, Sichuan
- Resource reserve: 898.8 million tons
- Recommendations: TLE105A
-
Zhejiang Jiaotong Mining's Aggregate Transportation Project
- Location: Dinghai, Zhoushan, Zhejiang
- Annual extraction volume: 20 million tons
- Site conditions: heavy load downhill (maximum gradient: 8%, transport distance: 1.5-2.5 km)
- Recommendations: TL875B, TLE90B
