All-Electric Refrigerated Truck
The all-electric refrigerated truck is designed for efficient, sustainable cold chain distribution. Equipped with a 135° high-capacity battery, it delivers a driving range of over 400 km, meeting the needs of full-day urban cold chain delivery. The 18 m³ cargo box accommodates up to 280 cases of frozen goods, while the Weichai Fudi battery supports fast charging, adding 200 km of range in just 30 minutes.
A 360 Nm high-torque motor ensures smooth hill climbs, including steep ramps in underground garages. Safety and visibility are enhanced by a rearview camera and electrically heated mirrors, making deliveries secure even in rain or fog. For added convenience, the truck features an electronic parking brake and parking air conditioner, keeping drivers comfortable during loading or unloading without additional energy consumption.
| Truck type | | |
| General | Cab size (mm) | 2030 (one row of seats, flat top) |
| Box size (mm) | 4100×2100×2100 | |
| Frame size (mm) | 800×180 (longitudinal beam) | |
| Wheelbase (mm) | 3360 | |
| Drivetrain | Battery capacity | 135kWh (Weichai Fudi Battery) |
| Motor power | 120kW (Yida integrated axle drive motor) | |
| Torque (N.m) | 360 | |
| Driving range | >400km | |
| Chassis | Tyre | 7.00R16LT8PR (vacuum tyre) |
| Brake | Air brake | |
| Suspension | 2/5 | |
| Front axle | 3t (Hande maintenance-free front axle) | |
| Rear axle | 5t (Hande maintenance-free rear axle) Rear axle ratio: 16.193 | |
| Vehicle Features | LCD instrument panel | 7-inch LCD instrument panel |
| Other components | Multifunction steering wheel, cruise control, rearview camera, Electrically heated rearview mirror, electronic parking brake, parking air conditioner | |

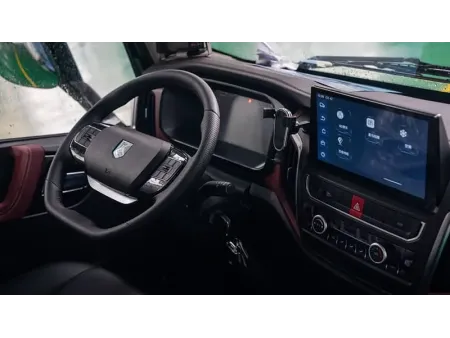

- Steering wheel

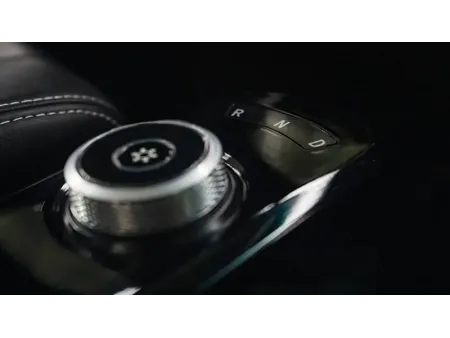

- Gear selector
- Side door
- Axle
- Driver cab
- Central console
