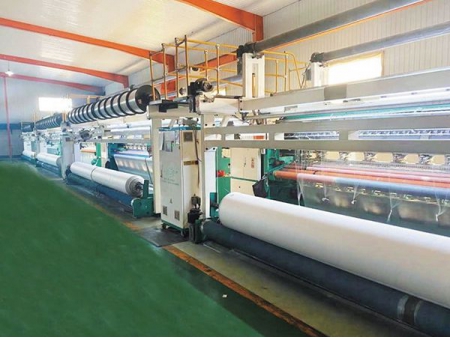

SMJ-III Raschel Machine

Raschel warp knitting machine for making net bags, mesh bags and vegetable bags

Applications

The mesh bags have good weaving effect and excellent breathability. They can also have added bag seal cord and are mainly used for packaging various vegetables and fruits.

Features
  • Net knitting machine can process tape yarns and monofilaments.
  • The raschel knitting machine has functions of automatically weaving a bag seal cord into the net and closing the net sides.
Specifications
  • Needle type Block latch needle
  • Gauge E2, E3
  • Number of bars 9/11 bars
  • Working width 210"/270"
  • Max. speed 650 rpm
Machine Model Dimensions (L×W×H) Floor Area (m²) Machine Weight (kg) Total Power (kW)
SMJ-III-210" 5530×6620×2500 36.65 10000 14.05
SMJ-III-270" 7500×6620×2500 46.67 15000 16.3
