High Speed Net Knitting Machine
Request a Quote
SMJ-III Raschel Machine
Raschel warp knitting machine with double needle bar for producing agricultural nets, shade nets and greenhouse nets
Applications

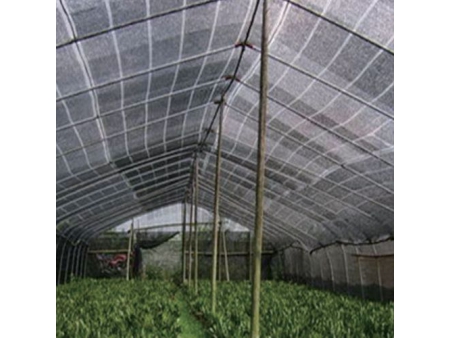

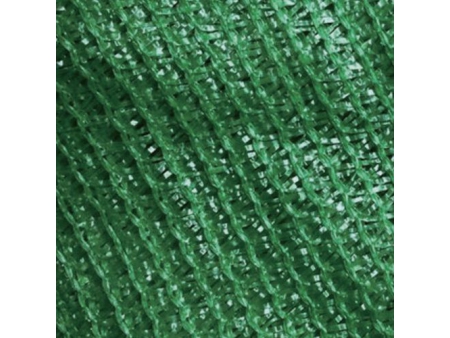

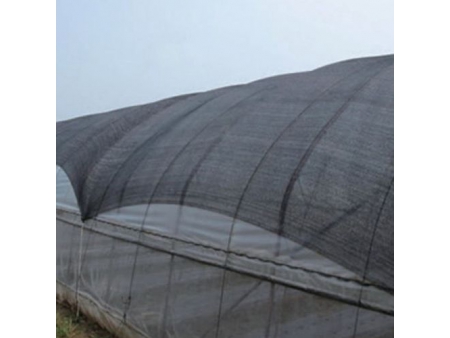

Shade nets with good breathability, mainly used for greenhouse planting, flower and tea tree cultivation, animal and plant breeding, scenic area shading, etc.
Features
- High speed net knitting machine adopts an open type cam with a swing arm.
- The net knitting machine supports yarn let-off by creel, electronic control, roller, or warp beam.
- This Raschel warp knitting machine allows for independent batching.
- Net knitting machine can process tape yarns and monofilaments.
Specifications
- Needle type Individual latch needle, block latch needle
- Gauge E2, E3, E4, E6
- Number of bars 5/9 bars
- Working width 210"/270"/340"
- Max. speed 680 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 5530×6620×2500 | 36.65 | 10000 | 14.05 | |
| 7500×6620×2500 | 46.67 | 15000 | 16.3 | |
| 9900×7000×2450 | 69.3 | 15800 | 24.6 |
