GE2393 Raschel Machine

Raschel warp knitting machine with single needle bar for producing shade nets, fishing nets and safety nets

Applications

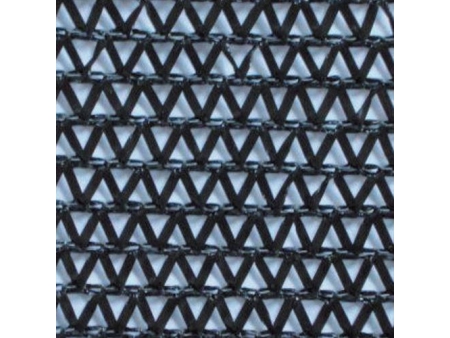

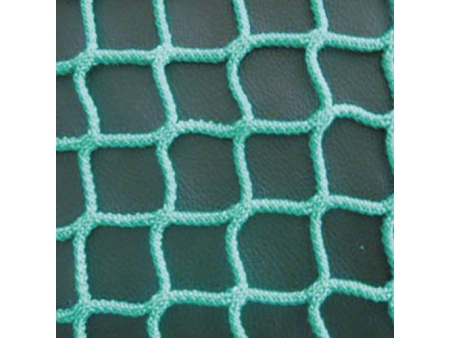

Sunshade nets, knot-free fishing nets, synthetic mesh, knitted mesh fabric, safety nets, sports barrier nets, highway collision prevention nets, deep-sea breeding nets, hay nets

Features
  • The raschel warp knitting machine adopts an oil-immersed cam-linkage mechanism.
  • Net warp knitting machine uses a medium stroke latch needle during operation.
  • Net warp knitting machine is capable of processing tape yarns, monofilaments or a combination of the two for producing nets at high speeds.
  • Net warp knitting machine can meet the one-time winding requirement for hay nets.
Specifications
  • Needle type Individual latch needle, block latch needle
  • Gauge E1, E5, E6, E7, E8, E9, E12
  • Number of bars 2-8 bars
  • Working width 260"/300"/352"
  • Max. speed 650 rpm
Machine Model Dimensions (L×W×H) Floor Area (m²) Machine Weight (kg) Total Power (kW)
GE2293-260" 7600×2300×2600 17.48 11500 22.6
GE2293-300" 8600×2300×2600 19.78 12000 22.6
GE2293-352" 10800×2300×2600 24.84 14400 24.6
