3CM-5U
Fully automatic open-mouth bagger for filling granular and powder products into pre-made open-mouth bags
The automatic open-mouth bagging machine is built for stable, continuous bagging performance across a wide range of packaging materials. It handles paper bags, PE heavy-film bags, and laminated woven bags, and supports flat-top, M-type, and envelope-style bag designs. This flexibility makes it suitable for chemical, feed, grain, and other bulk-material applications that require consistent filling accuracy and reliable downstream integration.
Technical Specifications
| Machine dimensions (L×W×H) | 3350×2560×2700mm (excluding upright bag conveyor) |
| Applicable bag materials | Paper–plastic composite bags, heavy-duty PE film bags, laminated woven bags, aluminum foil bags |
| Applicable bag styles | Flat-top bags, M-gusset, envelope-style bags |
| Optional closing methods | Flexible configuration (e.g., sewing heat-seal tape; inner heat sealing folding sewing) |
| Applicable bag size | Length 700–900 mm Width 450–550 mm |
| Bag magazine capacity | 100bags |
| Filling range | 20-40kg/bag |
| Capacity | 200-400bags/hr (depending on material flow and bulk density) |
| Power supply | AC 220V/380V ±5%, 50 Hz±1%, three-phase four-wire |
| Peak power | 15kW |
| Air supply | 0.5–0.7MPa, 105Nm³/hr, inlet pipe diameter 1inch |
| Operating temperature | –5°C to 40°C, dew point –40°C |
| Vacuum system | Integrated rotary-vane vacuum pump |
Specifications are subject to change without prior notice.
Product images may differ from the actual model configuration.
Features
- Handles 20–40 kg filling with an output of 200–400 bags per hour.
- High-speed automatic bag-feeding unit supports continuous operation with minimal interruption.
- Each functional module includes dedicated control and safety mechanisms to maintain smooth, coordinated movement.
- Motor-driven systems deliver stronger, more efficient mechanical performance.
- Recommended to pair with the KS heat-sealing series for clean, secure, and airtight bag closures.
Working Process & Main Components
- 1 Upright bag conveyor

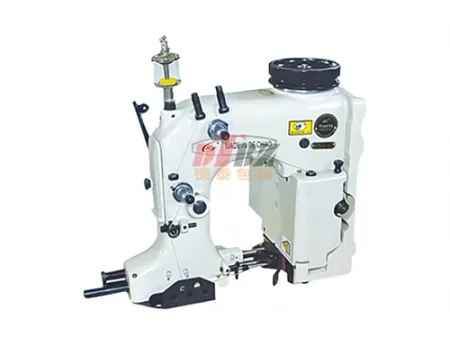

- 2 Bag sewing machine
- 3 Heat sealer
- 4 Filling system
- 5 Bag-bottom flattening device
- 6 Discharge spout
- 7 Empty-bag pick-up unit
- 8 Bag positioning unit
- 9 Automatic bag magazine & dispenser
- 10 Packaging bags
- 11Lateral drive cylinder
