MEMS 1xN Single Mode Optical Switch
Request a Quote
External PCB0 (1×2 to 1×128)
This MEMS 1xN single mode optical switch with external PCB is an optical switch based on Micro-Electro-Mechanical System (MEMS) technology. Channel selection can be achieved between an input fiber and up to N output fibers. The port configurations range from 1×2 to 1×128. The MEMS optical switch is bi-directional and functions as a Nx1 selector switch, making it applicable to a variety of applications including optical fiber communication and fiber sensing.
As a specialist MEMS optical switch manufacturer, Amazelink offers a wide selection of Telcordia GR-1073-CORE approved and RoHS compliant optical switches to fulfill clients' needs.
Features
- Compact size
- High reliability and durability
- Fast switching speed
- Telcordia GR-1073-CORE and RoHS compliant
Applications
- Optical communication
- Fiber sensing
- Remote fiber monitoring (working with OTDR or OCM)
- Optical network routing
- Measurement resource sharing
- Optical network protection and restoration

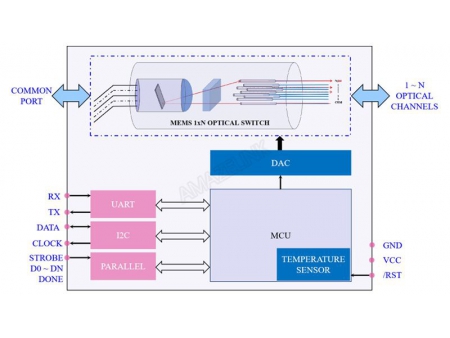

Schematic Diagram
Optical Specifications
PARAMETER | UNIT | VALUE | |
Wavelength | nm | 8:850 only 9:980 only 13:1290 ~ 1330 15:1525 ~ 1568 | |
Test Wavelength | nm | 1310 / 1550 / 1625 or 1650 | |
Insertion Loss | 1 x 2 | dB | ≤ 0.6, typical 0.5 |
1 x 4 / 8 | ≤ 0.8, typical 0.6 | ||
1 x 12 / 16 | ≤ 1.0, typical 0.9 | ||
1 x 24 / 32 | ≤ 1.3, typical 1.1 | ||
1 x 48 / 64 | ≤ 1.5, typical 1.2 | ||
1 x 96 / 128 | ≤ 2.0, typical 1.6 | ||
Return Loss | dB | ≥ 45 | |
Repeatability | dB | ≤ 0.1 | |
Crosstalk | dB | ≥ 40 | |
PDL | 2 < N ≤ 64 | dB | ≤ 0.2 |
64 < N ≤ 128 | ≤ 0.4 | ||
WDL | 2 < N ≤ 64 | dB | ≤ 0.3 |
64 < N ≤ 128 | ≤ 0.6 | ||
TDL | 2 ≤ N ≤ 16 | dB | ≤ 0.3 |
16 < N ≤ 64 | ≤ 0.4 | ||
64 < N ≤ 128 | ≤ 0.7 | ||
Switch Time | 2 ≤ N ≤ 16 | ms | ≤ 5 |
16 < N ≤ 64 | ≤ 10 | ||
64 < N ≤ 128 | ≤ 15 | ||
Durability | cycle | ≥ 1 x 109 | |
Maximum Optical Power | mW | ≤ 500 | |
Latching Type | Non-latching |
