Fertilizer Screening Equipment
Trommel Screen
Request a Quote

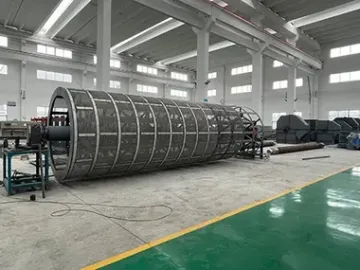

Trommel screen uses a rotating drum and a rolling brush device to create a spiral motion for material, allowing for precise and fine grading. This makes it an ideal solution for the high-volume, high-precision screening of compound fertilizers.
- Precise grading
The optimized length-to-diameter ratio and screen mesh aperture of the drum ensure uniform and precise particle grading.
- Reduced blockages
The drum uses an anti-corrosion screen mesh and is equipped with an automatic cleaning device to reduce blockages and vibration.
- Efficient for fertilizers
The screen mesh and beating device are optimized for the specific characteristics of compound fertilizer granules, ensuring easy discharge and quick grading.
Specifications
| Drum Size (m) | Production Capacity (t/h) | Motor Power (kW) | Rotation Speed (r/min) | Screening Area (m²) |
| Ø1.2×2 | 2-5 | 3 | 20 | 7.536 |
| Ø1.2×3 | 2-5 | 3 | 20 | 11.304 |
| Ø1.2×4 | 2-5 | 3 | 20 | 15.072 |
| Ø1.4×3 | 3-6 | 3 | 18 | 13.188 |
| Ø1.4×4 | 3-8 | 5.5 | 18 | 17.584 |
| Ø1.4×6 | 5-8 | 4 | 18 | 20.096 |
| Ø1.5×3 | 5-8 | 4 | 18 | 14.13 |
| Ø1.5×4 | 6-10 | 5.5 | 18 | 18.84 |
| Ø1.5×5 | 6-10 | 7.5 | 18 | 23.55 |
| Ø1.5×6 | 8-10 | 11 | 18 | 28.26 |
| Ø1.6×4 | 8-12 | 5.5 | 17 | 20.096 |
| Ø1.6×5 | 10-15 | 7.5 | 17 | 25.12 |
| Ø1.6×6 | 10-15 | 11 | 17 | 30.144 |
| Ø1.8×4 | 10-12 | 7.5 | 16 | 22.608 |
| Ø1.8×5 | 12-15 | 11 | 16 | 28.26 |
| Ø1.8×6 | 15-20 | 15 | 16 | 33.912 |
| Ø1.8×7 | 15-20 | 18.5 | 16 | 39.564 |
| Ø2.0×4 | 15-18 | 11 | 16 | 25.12 |
| Ø2.0×5 | 18-20 | 15 | 16 | 31.4 |
| Ø2.0×6 | 20-25 | 18.5 | 16 | 37.68 |
| Ø2.0×7 | 20-25 | 22 | 16 | 43.96 |
| Ø2.0×8 | 25-30 | 22 | 16 | 50.24 |
| Ø2.0×10 | 25-30 | 30 | 16 | 62.8 |
| Ø2.2×5 | 20-25 | 18.5 | 15 | 34.54 |
| Ø2.2×6 | 25-30 | 22 | 15 | 41.448 |
| Ø2.2×7 | 25-30 | 22 | 15 | 48.356 |
| Ø2.2×8 | 30-40 | 30 | 15 | 55.264 |
| Ø2.2×10 | 30-40 | 37 | 15 | 69.08 |
| Ø2.4×5 | 25-30 | 18.5 | 14.5 | 37.68 |
| Ø2.4×6 | 30-40 | 22 | 14.5 | 45.216 |
| Ø2.4×7 | 30-40 | 22 | 14.5 | 52.752 |
| Ø2.4×8 | 40-50 | 30 | 14.5 | 60.288 |
| Ø2.6×6 | 40-50 | 30 | 13 | 48.984 |
| Ø2.6×8 | 50-60 | 37 | 13 | 65.312 |
The drum body is made of Q235 steel, with the screen mesh and pressure plate made of stainless steel. The shaft is made of 45# steel.

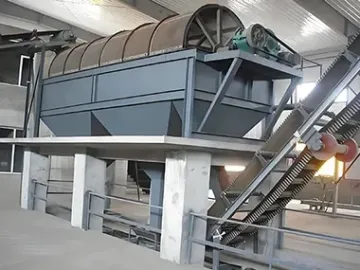

On-Site Cases
Lutian Fertilizer Co., Ltd. uses our Ø2.0×6m trommel screen.
Jiangxi Huilong Chemical purchased our Ø1.8×6m trommel screen.
Binh Thien, Vietnam purchased our Ø1.8×6m trommel screen.
