20T Telescopic Truck Cranes, STSQ20D
Request a Quote

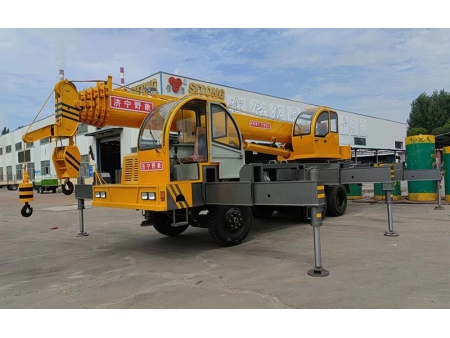

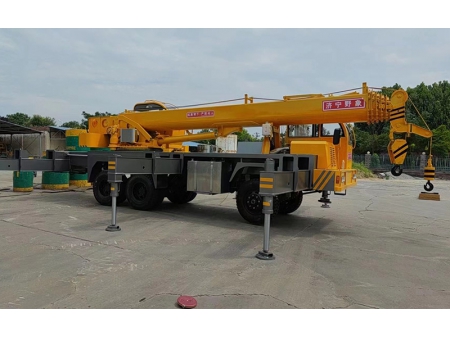

Our 20T telescopic truck-mounted crane is designed with a unique extendable supporting frame and our self-made chassis, the maximum lifting height is up to 47m. This truck-mounted crane is configured with 15kW motor, double-section stabilizer legs and 360-degree rotating platform, providing stable and reliable operation, as well as easy maintenance.
Features
- Outrigger system of hydraulic double-section stabilizer legs, wider outrigger span ensures stable operation;
- The maximum lifting height is up to 47m, auxiliary boom can be added;
- All cables have dustproof and waterproof design, they are managed separately to ensure independent operation without interference;
- 360-degree rotating platform;
- Max. loading capacity
- 20t
- Max. lifting height
- 47m
- Longitudinal outrigger span
- 6.75m
- Transversal outrigger span
- 8m
- Boom
- 8 sections (7m per section)
- Frame extension length
- 1.5m
- Dimensions
- 10.05m*2.4m*3.2m
- Motor power
- 15kW
- Slewing speed
- 0-3r/min
- Engine model
- YC6J180-33
- Engine power
- 132kw
- Tyres
- 900R20
- Wheelbase
- 4.6m
