Corrugator Overhead Bridge
Request a Quote
Individual Machines for Corrugated Board Manufacturing
Bridge conveyor system for smooth web transfer and consistent tension control to support continuous corrugator production

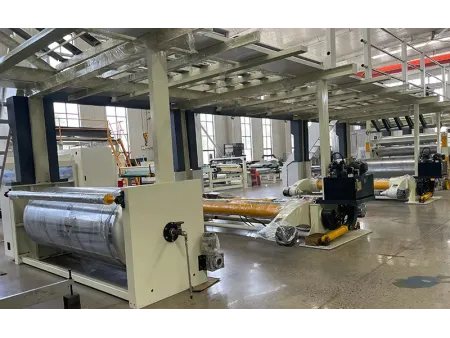

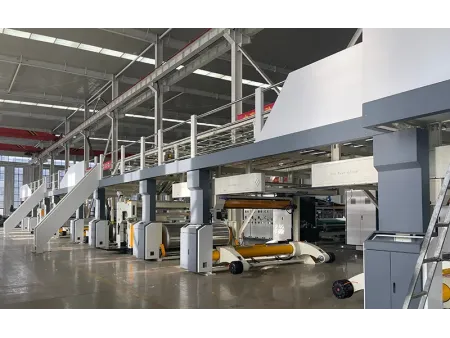

In the production of corrugated board, the overhead bridge (conveyor bridge) is mainly responsible for transporting and lifting the semi-finished corrugated paper, facilitating subsequent multi-layer lamination.
Features
- Equipped with an independent variable frequency motor lifting mechanism and PVC conveyor belt, ensuring the single-face corrugated paper maintains stable fluting during transport.
- All roller surfaces are precision ground and hard-chrome plated to enhance wear resistance and service life.
- Utilizes a vacuum adsorption tension control system with stepless adjustable airflow to accommodate different paper types.
- Features dual electric edge forming devices and an advanced positioning system to ensure precise alignment.
Technical Specifications
| Width, mm | 1400-2500 |
| Number of layers | 1 layer, 2 layers, 3 layers |
| Upper paper roller & tension roller diameter, mm | Ø127 |
| Conveying roller diameter, mm | Ø110 |
| Active tension roller diameter, mm | Ø127 |
| Paper passing roller & guide roller diameter, mm | Ø110 |
| Paper feed traction shaft diameter, mm | Ø110 |
| Single facer board lifting motor | 3kW, 380V, 50Hz, continuous duty (S1) |
| Bridge suction fan | 3kW, 380V, 50Hz, continuous duty (S1) |
| Paper width adjustment motor | 250W, 380V, 50Hz, short-time duty (S2) |
| Conveying speed, m/min | 0-150 |
