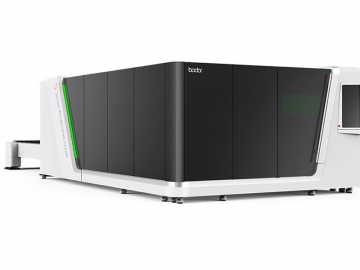

High Power Sheet Metal Laser Cutter
Request a Quote
Fiber Laser Cutting Machine, Fiber Laser Cutting System
Introduction
The high power sheet metal laser cutter is designed to cut thin metal sheet with a maximum thickness of 6mm. The cutting power is between 1000W and 6000W.
High power sheet metal laser cutter has an automatic loading and unloading system and exchange platform, so the time for loading and unloading can be significantly reduced.
The cutting table is equipped with a vacuum pump that can adsorb the metal sheets firmly to prevent movement, ensuring high cutting precision.
After cutting, the metal cutting machine can automatically pick and place the sheet metal because of the dual fork.
Application
- Sheet metal processing
- Electronic product
- Auto parts
- Machinery Parts
- Household appliances
- Handcrafted gift
- Advertising
- Kitchenware
Materials
- Stainless steel
- Alloy steel
- Carbon steel
- Aluminum alloy
- Galvanized steel
- Copper
- Titanium
Parameters
| Model | E3015A |
| Working area | 3000*1500mm |
| X/Y-axis Max. speed | 140m/min |
| Max. acceleration | 1.5G |
| X/Y-axis positioning accuracy | 0.05m |
| X/Y-axis repositioning accuracy | 0.03m |
| Laser output power | 6000W/4000W/3000W/2000W/1500W/1000W |
