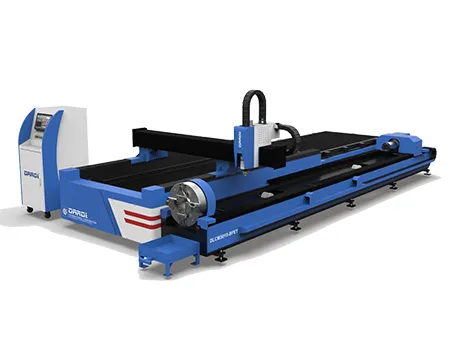

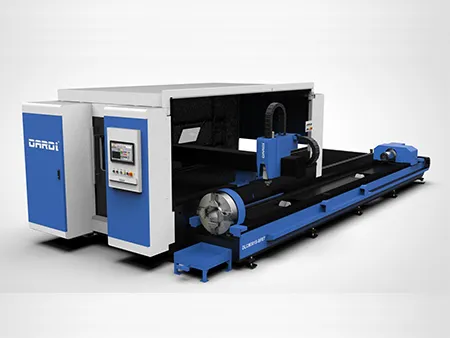

Hybrid Laser Cutting Machine for Tube and Sheet Metal, BFET Series
Request a Quote
Applicable Materials
In industries where both versatility and precision are required, hybrid laser cutting machines are invaluable. Capable of cutting metal materials ranging from 0.5mm to 20mm in thickness, such as carbon steel, stainless steel, and aluminum, hybrid laser cutters also excel in processing tubes of various shapes, including square, round, and custom profiles. These laser cutting systems are widely used across industrial manufacturing, shipbuilding, home decor, and craft production, making them an essential tool for diverse sectors.
Features
- Capable of processing both metal sheets and tubes efficiently, adapting to different specifications easily.
- Its high automation level ensures precision and reliability across multiple applications.
- Equipped with durable components from well-known brands, ensuring consistent long-term performance.
- The compact gantry structure is designed for simplicity and maximizes workspace utility.
- Includes a wireless control, offering flexible and convenient operation.
Main Parameters
- Laser power: 1000W-6000W
- Operating voltage: 380V/50Hz, 380V/60Hz, 220V/50Hz, 220V/60Hz
- Machine power: 12kW
- Max. running speed: 110m/min
- Max. acceleration: 0.8G
- Operating temperature: 0℃~40℃
- Operating humidity: <90% Non-condensing
- Axes motion: Precision rack and pinion
- Cooling method: Water cooling
Detailed Parameters of Available Models
| Model | | | |
| Working area (mm) | 3000*1500 | 4000*2000 | 6000*2000 |
| Z-axis travel (mm) | 360 | 360 | 360 |
| Machine dimensions (mm) | 3510*8750 | 4020*8750 | 4020*9000 |
| Round tube cutting diameter (mm) | 20-220 | 20-220 | 20-220 |
| Rectangular tube edge length (mm) | 20-150 | 20-150 | 20-150 |
| Max. tube length (mm) | 3000/4000/6000 | 3000/4000/6000 | 3000/4000/6000 |
