Request a Quote

90mm-250mm Plastic Pipe Welding Machine

The pipe fusion machine is used for the butt fusion welding of plastic pipes made from HDPE, PP, PVDF and MPP materials.

  • Model: WP250C
  • Welding range: 90-250 mm
  • Applicable pipe diameters: 90-110-125-140-160-180-200-225-250 mm
  • Power supply: 220 V/50Hz, 1PH
  • Total power: 4.3 kW
  • Heating plate: 2.3 kW
  • Planing tool: 2.0 kW
  • Max temperature of heating plate: 270 ºC
  • Temperature deviation: ±5 ºC
Application

WP250C manual butt fusion welding equipment is suitable for jointing HDPE, PP, PVDF, MPP pipelines.

Features
    1. The manual butt fusion equipment features a sturdy and distortion-free machine frame which is ideally suitable for heavy-duty operations.

    1. Hand-operated transmission mechanism delivers smooth, stable, effortless, and efficient operations.

    1. The copper coil motor features a self-locking system for preventing misoperation. Steel reducer inserts have double cutting edges to offer excellent durability and high-speed operations.

    1. The pipe butt fusion equipment employs superior resistance wire for efficient and even heating performance. The heating element is finished with high-quality Dupont or Daikin coating.

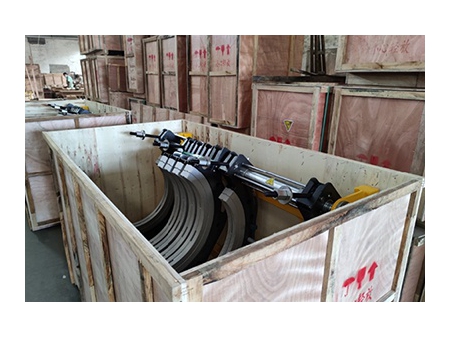

Packaging & Shipping
