Manual Butt Fusion Welding Machine, WP200D
Request a Quote
63mm-200mm Plastic Pipe Welding Machine
The pipeline welding machine makes plastic pipes made from HDPE, PP, PVDF and MPP materials are joined by butt fusion welding.
- Model: WP200D
- Welding range: 63-200 mm
- Applicable pipe diameters: 63-75-90-110-125-140-160-180-200 mm
- Power supply: 220 V/50Hz, 1PH
- Total power: 2.9 kW
- Heating plate: 1.8 kW
- Planing tool: 1.1 kW
- Max temperature of heating plate: 270 ºC
- Temperature deviation: ±5 ºC
Application
WELPING manual butt fusion welding machines are suitable for jointing HDPE, PP, PVDF, MPP pipelines.
Features
-
-
-
Standard hand-operated transmission mechanism is easy to operate.
-
-
-
The machine frame is cut and welded by laser to achieve higher sturdiness and stability.
-
-
-
Copper coil motor has a self-locking system to prevent damages caused by misoperation. High-speed steel reducer inserts with double cutting edges are highly durable.
-
-
-
High quality resistance wire delivers efficient and even heating performance. The heating element is applied with superior Dupont or Daikin coating.

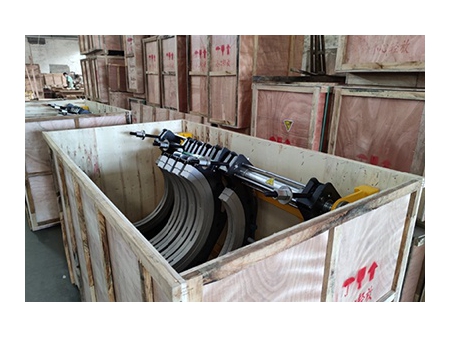

Packaging & Shipping
