Seam Welding Machine (Stitch Welder)
Request a Quote
View All: http://foam-spraying.com

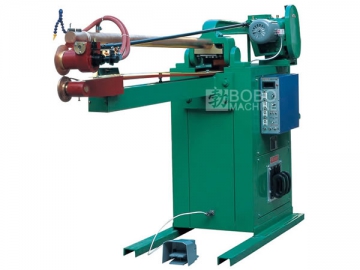

The seam welding machine closes the round segment seam through welding. With a longer and taller arm specifically designed for ventilation air duct work, the electrode and welding arm is made from high standard copper for better conductivity. The duty cycle is rated as 50% and indicates high efficiency work.
Main technical data
| | | | | |
| Rated input capacity | 35KVA | 55KVA | 75KVA | 100KVA |
| Rated input voltage | 1-380V/50HZ | 3-380V/50HZ | ||
| Rated load cycle | 50% | |||
| Max.output capacity | 45KVA | 88KVA | 110KVA | 170KVA |
| Max. short circuit current | 6200A | 11000A | 16000A | 26000A |
| Max. pressure of electrode | 400kgf | 600kgf | 1000kgf | |
| The flow of cooling water | 6L /min | 8L /min | ||
| Arm length | 1200mm | 350mm (can be longer as you want) | ||
| Electrode stroke | 80mm | |||
| Speed of welding | 0.5-3m | |||
| Weight | 220kg | 280kg | 350kg | 400kg |
As a specialized seam welding machine (stitch welder) manufacturer in China, we at BOBO Machine also provide Polyurethane Spray Foam Machine, filter core making machine, car wheel rim machine, PU Gasket Seal Machine, and much more.
