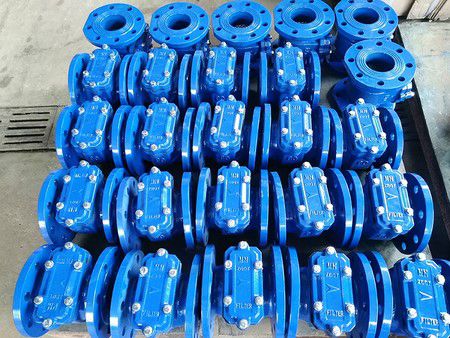

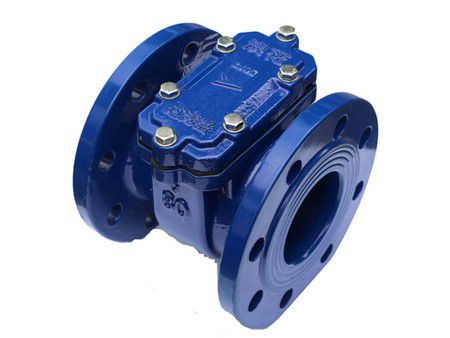

Ductile Iron Basket Strainer
The ductile iron basket strainers, with their durable ductile iron casing, are engineered to provide superior protection for water meters in pipeline systems. This casing excels in strength, elasticity, impact resistance, and corrosion resistance. By shielding meters from solid impurities, it ensures accurate meter readings and prolongs meter lifespan.
Our water meter filter, built with a ductile iron casing, is designed to stand up against the toughest conditions. This material is not only strong and flexible, but it's also highly resistant to impacts and corrosion. This makes our strainer perfect for protecting water meters in your pipeline from any solid particles that might come their way. It's all about keeping your water metering accurate and uninterrupted, no matter what’s in it.
- Working pressure: 1.0MPa or 1.6MPa;
- Pressure loss: ≤0.025MPa under common flow rate;

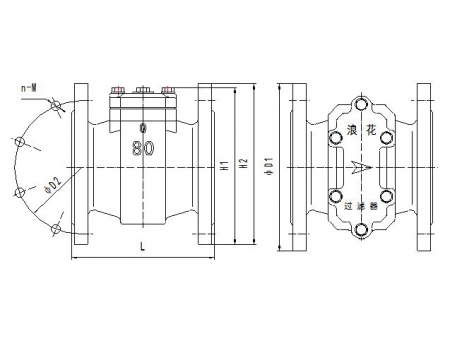

| Nominal diameter | Length | Height | External diameter of flange (mm) | Bolt circle diameter (mm) | Connection bolt nxM | |
| ØD1 | ØD2 | |||||
| L(mm) | H1(mm) | H2(mm) | ||||
| DN50 | 150 | 157 | 157.5 | Ø165 | Ø125 | 4xM16 |
| DN65 | 150 | 174 | 177.5 | Ø185 | Ø145 | 4xM16 |
| DN80 | 170 | 188 | 192.5 | Ø200 | Ø160 | 8xM16 |
| DN100 | 180 | 213. | 212.5 | Ø220 | Ø180 | 8xM16 |
| DN125 | 180 | 237 | 240 | Ø250 | Ø210 | 8xM16 |
| DN150 | 200 | 285.5 | 277.5 | Ø285 | Ø240 | 8xM20 |
| DN200 | 220 | 344.5 | 332.5 | Ø340 | Ø295 | 8xM20 |
| 12xM20 | ||||||
| DN250 | 240 | 413 | 387.5 | Ø395 | 350 | 12xM20 |
| 418 | 397.5 | Ø405 | 355 | 12xM24 | ||
| DN300 | 250 | 463 | 437.5 | Ø445 | 400 | 12xM20 |
| 470.5 | 452.5 | Ø460 | 410 | 12xM24 | ||
- Safe operation in water temperatures up to 90°C.

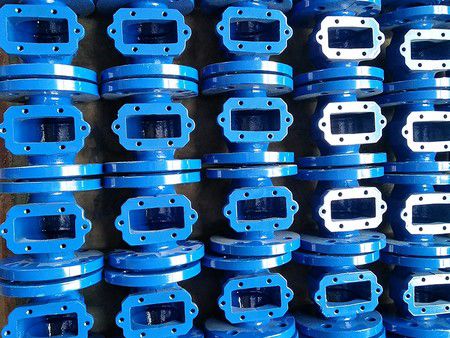

- Casing made from high-strength ductile iron.

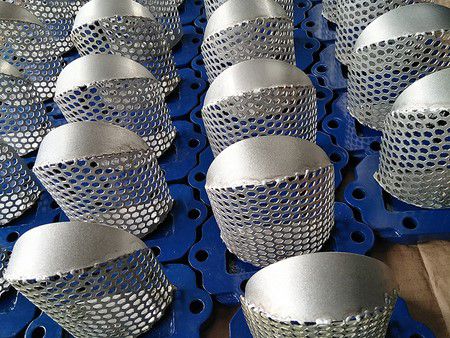

- Stainless steel strainer for extended product life.
- Both interior and exterior walls coated with epoxy resin to prevent corrosion.
- The curved design of the basket strainer enhances filtration multiple times and improves flow capacity while reducing pressure loss.
- The bottom of the basket strainer is designed for easy dirt removal, simplifying maintenance.
