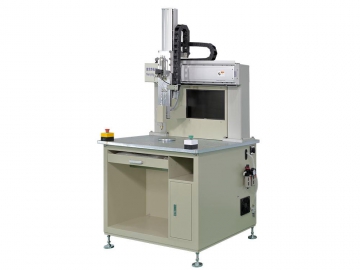

4-Axis CNC Glass Cutting Machine
The 4-Axis CNC glass cutting machine consists of the precision manipulator, servo drive system, computer control system and operating table. It is widely used for the production of cut glass for later use in automobile rearview mirrors, make-up mirrors, magnifying glasses, household appliance glass and photovoltaic glass. The glass cutting machine is also especially useful for cutting glass with a deep curvature. The machine operating process is as follows: turn on the power supply, gas source and computer. Open files for the cut lens outline, or draw the cut lens outline directly in the CAD program. The cutting process will automatically be programmed, and the cutting parameters will be input into the computer for later recall. These are both done simultaneously.
The operator places the pending lens on the template, adjusts the position of the knife, and presses the start switch. The cutter will then operate in accordance with the program requirements. The knife wheel will automatically center during the cutting, and return to the original position when cutting is complete.

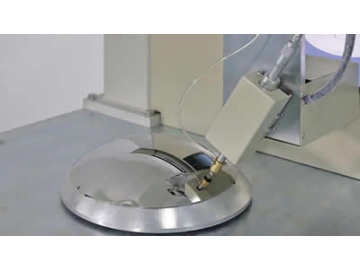

- Cutter aims at the center automatically

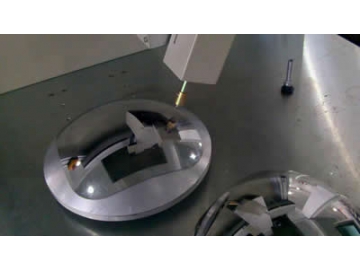

- In processing

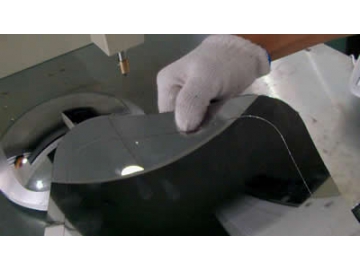

- In processing
- In processing
Cutting range (customizable) | ≯Φ525mm |
Minimum radius of curvature | SR≮100mm |
Cutting thickness | 1-5mm |
Cutting precision | ≤±0.10mm |
Cutting speed | 20M/min |
Control system | CNC computer control, 4 axis linkage |
Drive system | servo motor, precision ball-screw, ultra-precision planetary gear |
Workbench size (L×W) | 1150×940 mm |
Input power supply | Single-phase 220V/2.5Kw |
Input gas source | 0.6-0.8Mpa |
Note: The cutting range, input power supply and the voltage level of the input power supply can be customized according to your requirements.
Features
1.Large cutting range, high cutting speed and high cutting precision: the cutting speed can be automatically adjusted, and deceleration is done at a sharp angle, while acceleration is done in a large arc or straight line.
2. The 4 axis linkage drive allows for the same cutting depth. The cutter will center itself automatically, so that the glass is easily separated and there are no chips.
3.The software is easy to learn, with modification of the graphic call convenient.
4.Importantcomponents come from internationally known brands, including HIWIN, AIRTA, YASKAWA, SMC and SCHNEIDER in order to achieve a reliable quality and excellent work stability.

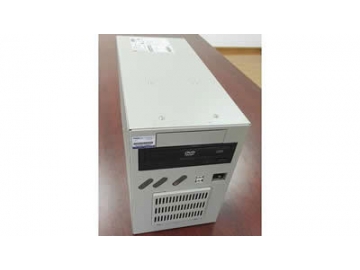

- Industrial Personal Computer

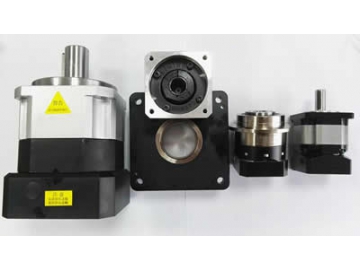

- Precision decelerator

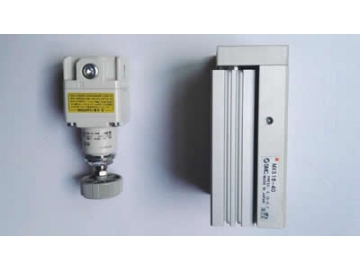

- Air cylinder and precision pressure relief valve

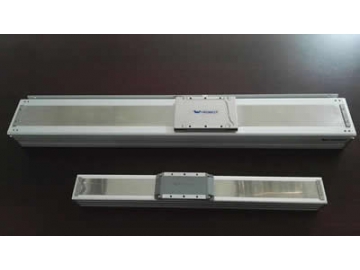

- Slider module
- Low voltage apparatus

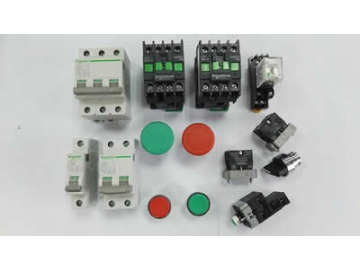

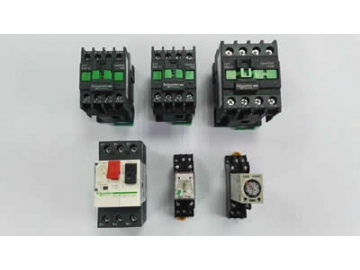

- Contactor and relay
Besides the 4-axis CNC glass cutting machine for processing special shaped glass, Yetuo offers wide range of glass processing equipment for glass cutting, glass edging, glass chamfering, glass washing, etc. Our company has complete equipment to manufacture quality automatic glass machinery for global customers.
