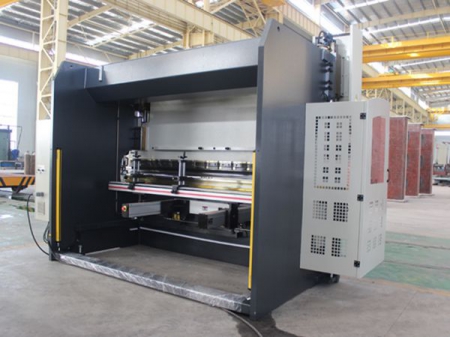

4-Axis CNC Press Brake

Request a Quote

View All: http://accurlcnc.com/2-3-4-axis-cnc-press-brake/249247/index.html

Designed for the future, this CNC press brake maximizes the speed and quality during production in order to decrease per unit costs.

Impressive bending solutions

Equipment options can be customized upon request in order to give each customer the desired bending machine.

High Speed and high performance

Incredible bending and return speed.

Twice as fast production capacity compared to conventional CNC press brakes.

With these specs, deep bends can be achieved with longer tools, parts can be easily taken out from the front of the machine for quick changeover.

Z-type parts can be bent with long dies.
"High-speed free fall"
"High pressing speed"
"High returning speed"

Servo motorized back gauge X R-axis (standard)

The CNC backgauge designed by ACCURL is fast and accurate. The strong construction ensures efficient operation for many years.

The system is servo motor driven with ball screw shafts and on linear bearings with an accuracy of 0.01mm.

Backgauge can be upgraded with X1, X2, Z1, Z2, R1 and R2 upon request.

These Press Brakes are right for you if you are looking for

High quality and repetitive bending obtained by using synchronized cylinders and valves.

Automatic axis referencing and calibrating when machine is turned on.

All ACCURL machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology.

Rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm.

Well-known top and bottom tool brands are hardened for long lasting use and provide precise bending.

Silent high pressure pump.

Standard Equipment

Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.

4 axes (Y1, Y2, X, R-axis)

Back gauge system with X, R-axis driven by AC servo with colored graphics.

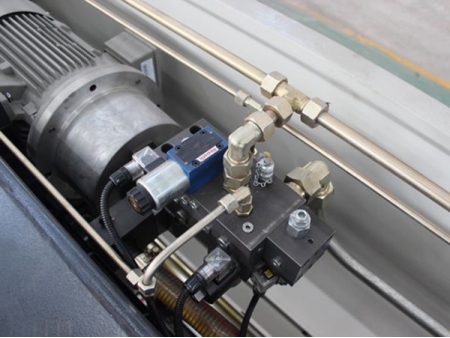

HOERBIGER servo hydraulic system.

CNC controlled motorized anti-deflection system.

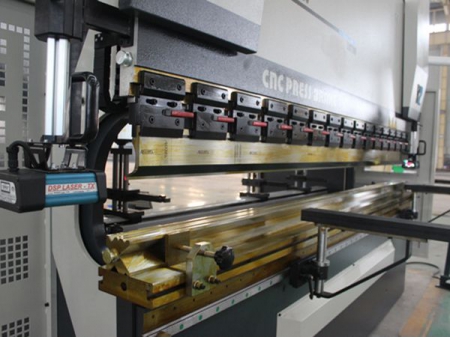

Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section).

Easy to clamp tool holding system with upper and lower tools.

Standard graphic controllers can be selected from: Delem DA56s 2D color graphical touch screen controller and Cybelec Mod Eva 12S

Electrical panel with cooling system designed to meet CE standards.

Ergonomic user friendly, pendant control panel.

Back light safety guards (category-4)

Front side covers with safety switches.

Synchronization of the Y1 Y2 axis provided by linear encoders with 0.01mm tolerances.

oot pedal meets CE regulations.

Sliding front support arms with T slot and mm/inch rulers.

Throat depth 410 mm.

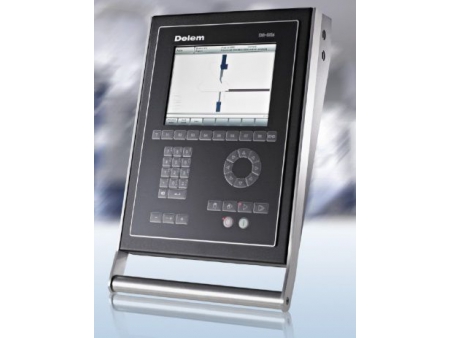

Delem DA56s CNC Control system

10,4” LCD TFT color display

2D graphical programming

Bend sequence determination

Developed length calculation

Crowning control

Tool/material/product library

USB keyboard and mouse interface

Support multiple language Settings.

Angle corrections and material stretching database;

Delem Modusys compatibility (module scalability and adaptability)

The basic machine control functions are Y1 Y2 X R –axis. A second back gauge axis can also be used as Z1 Z2 X1 X2 or R2 axis.

Specifications

Model(SC/MB8)			63T×1500	63T×2500	110T×3200	135T×3200	175T×3200	220T×3200	250T×3200
Bending Capacity		Tons	63	63	110	135	175	220	2500
Bending Length		mm	1500	2500	3200	3200	3200	3200	3200
Daylight		mm	1100	2060	2700	2700	2700	2700	2700
Max. Shut Height		mm	430	430	480	480	480	480	480
Slide Stroke		mm	200	200	200	200	200	200	200
Throat Depth		mm	370	370	400	400	400	400	400
Bolster Width		mm	150	150	200	200	200	200	200
Down Speed		mm/min	180	180	180	180	160	160	160
Pressing Speed		mm/min	8	8	10	10	10	10	10
Return Speed		mm/min	160	160	160	160	125	125	110
CNC Control Axes			Y1 Y2 X R Crowning
Back Gauge Stroke		mm	500	500	500	500	500	500	500
Outline Size	L	mm	1825	2825	3500	3500	3500	4500	3500
	W	mm	1650	1650	1650	1650	1650	1650	1730
	H	mm	2600	2430	2540	2540	2580	2580	2580
Weight		kg	4600	5600	8000	9100	10000	12000	15000

Detailed Pictures
