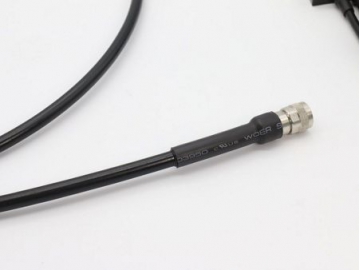

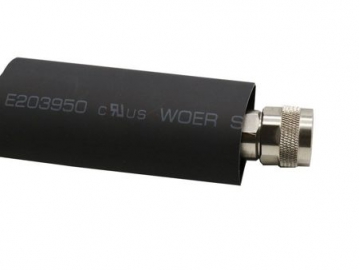

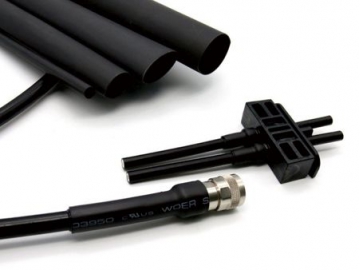

Dual Wall Heat Shrink Tubing, SBRS-(3X,4X)GF
Model: SBRS-(3X,4X)GF
Adhesive-lined cross-linked polyolefin heat shrinkable tubing
SBRS-(3X,4X)GF adhesive lined heat shrink tubing is dual wall heat shrink tubing made from cross-linked polyolefin. This heat shrink tubing is ideal for insulation and protection of electrical splices and terminations where maximum flame retardancy and exceptional environmental sealing capabilities are required.
Features
- 3:1&4:1 shrink ratio
- Highly flame retardant
- High shrink ratio allows for covering irregularly shaped connectors and components
- Superior sealing against water, moisture and other contaminants
- Continuous operating temperature: -55℃～135℃
- Fully shrink temperature: ≥125℃
- Meet MIL-DTL-23053/4
SBRS-(3X)GF Dual Wall Heat Shrink Tubing
| Size | Expanded | After Recovery | Standard Package | |||
| inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length (m/spool) |
| 1/8 | 3.2 | 3.2 | 1.0 | 0.95±0.15 | 0.40±0.10 | 200 |
| 3/16 | 4.8 | 4.8 | 1.6 | 1.10±0.15 | 0.40±0.10 | 100 |
| 1/4 | 6.4 | 6.4 | 2.2 | 1.20±0.15 | 0.45±0.10 | 100 |
| 5/16 | 7.9 | 7.9 | 2.7 | 1.35±0.15 | 0.50±0.10 | 100 |
| 3/8 | 9.5 | 9.5 | 3.2 | 1.45±0.15 | 0.50±0.10 | 50 |
| 1/2 | 12.7 | 12.7 | 4.2 | 1.70±0.20 | 0.50±0.15 | 1.22 or 25m/roll |
| 5/8 | 15.0 | 15.0 | 5.2 | 1.80±0.20 | 0.55±0.15 | 1.22 or 25m/roll |
| 3/4 | 19.1 | 19.1 | 6.3 | 2.00±0.20 | 0.60±0.20 | 1.22 or 25m/roll |
| 1 | 25.4 | 25.4 | 8.5 | 2.10±0.25 | 0.60±0.20 | 1.22 or 25m/roll |
| 1-1/4 | 30 | 30 | 10.2 | 2.20±0.25 | 0.65±0.20 | 1.22 or 25m/roll |
| 1-1/2 | 39 | 39 | 13.5 | 2.40±0.25 | 0.75±0.20 | 1.22 or 25m/roll |
| 2 | 50 | 50 | 17.0 | 2.70±0.25 | 0.80±0.20 | 1.22 or 25m/roll |
SBRS-(4X)GF Dual Wall Heat Shrink Tubing
| Size | Expanded | After Recovery | Standard Package | |||
| inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length (m/spool) |
| 5/32 | 4.0 | 4.0 | 1.0 | 1.00±0.15 | 0.40±0.15 | 200 |
| 1/4 | 6.0 | 6.0 | 1.5 | 1.10±0.15 | 0.40±0.15 | 100 |
| 5/16 | 8.0 | 8.0 | 2.0 | 1.50±0.15 | 0.50±0.25 | 50 |
| 1/2 | 12.0 | 12.0 | 3.0 | 1.70±0.15 | 0.60±0.15 | 1.22 or 25m/roll |
| 5/8 | 16.0 | 16.0 | 4.0 | 2.00±0.15 | 0.60±0.15 | 1.22 or 25m/roll |
| 25/32 | 20.0 | 20.0 | 5.0 | 2.30±0.25 | 0.60±0.15 | 1.22 or 25m/roll |
| 1 | 24.0 | 24.0 | 6.0 | 2.60±0.25 | 0.70±0.15 | 1.22 or 25m/roll |
| 1-1/4 | 32.0 | 32.0 | 8.0 | 3.00±0.30 | 0.70±0.15 | 1.22 or 25m/roll |
| 2 | 52.0 | 52.0 | 13.0 | 3.30±0.30 | 0.70±0.15 | 1.22 or 25m/roll |
