8T Truck Cranes, STSQ8T

Request a Quote

View All: http://heavy-crane.com/1-2-5-8t-truck-mounted-crane-stsq8t.html

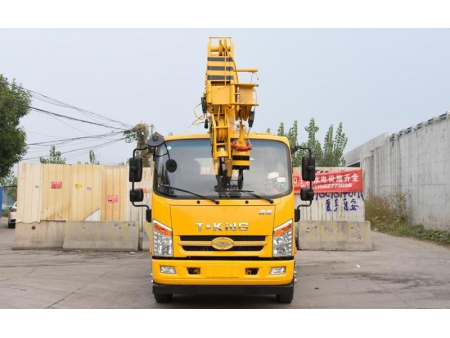

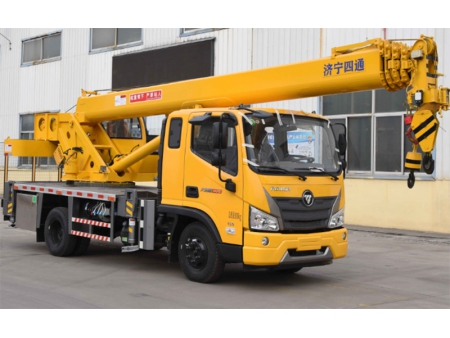

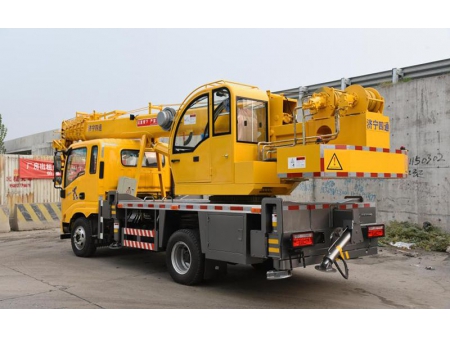

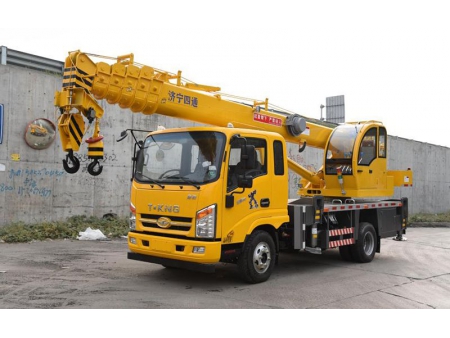

STSQ8T is an 8-ton truck-mounted crane with a telescopic boom that can extend to the maximum length of 28m. A horizontal supporting cable is equipped to ensure that the telescopic boom extents and retracts freely in horizontal position. This truck-mounted crane is configured with 11kW motor, double-section stabilizer legs and Tangjun chassis with small turning radius, making the crane truck to work stably and efficiently in limited spaces.

Features

Equipped with Tangjun chassis and Weichai engine (130HP), ensuring stable and reliable performance;
Telescopic boom is fabricated with high-strength manganese steel sheets through bending and welding processes, ensuring the high durability of the boom without deformation;
Control valves are mounted on both sides of the crane for convenient operation;
360-degree rotating platform;

Specifications

Max. loading capacity: 8t

Max. lifting height: 28m

Longitudinal outrigger span: 5.3m

Transversal outrigger span: 3.85m

Boom: 6 sections (6m per section)

Dimensions: 8.71m*2.15m*3.11m

Motor power: 11kW, 380V, 50Hz, 3 Phase

Engine power: 130HP

Tyres: 750R16

Wheelbase: 3360mm

Crane weight: 9100kg
