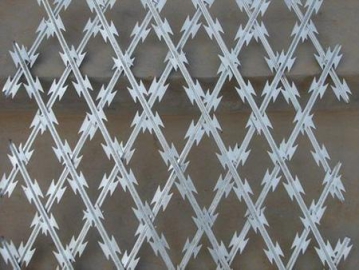

Razor wire is an effective trespassing deterrent installed atop security barrier fencing. The sharp razor wire is imposing and extremely dangerous to attempt to pass through, therefore, it is an excellent security feature that is sure to turn would be trespassers away. Razor wire is commonly used for fencing around secure areas like airports, military bases, borders, prisons, and railyards.
Biaosheng provides different kinds of concertina wire including straight razor wire, spiral razor wire and welded razor wire fencing.
Parameters
| Item | Thickness of the blade (mm) | Core diameter (mm) | Blade length (mm) | Blade width (mm) | Space of the blades (mm) |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 25±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 25±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 35±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 36±1 |
| BTO-28 | 46±1 | ||||
| BTO-30 | 46±1 | ||||
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Blade
| External diameter | Number of coils | Standard coverage length | Production form | Remark |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-10.15.22 | Double crossed coil |
| 600mm | 86 | 14M | BTO-10.15.22 | Double crossed coil |
| 700mm | 72 | 12M | BTO-10.15.22 | Double crossed coil |
| 800mm | 64 | 10M | BTO-10.15.22 | Double crossed coil |
| 960mm | 52 | 9M | BTO-10.15.22 | Double crossed coil |
