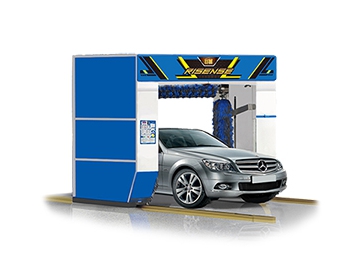

Automatic Car Wash System CF-550

Automatic Car Wash System CF-550
Request a Quote

This product has been discontinued and removed from our shelves.

The following is an automatic car wash system for self-service car washing facilities. This car wash machine does not need an employee to supervise. Customers can insert coins or online pay to wash their cars. This car wash equipment can be fully-automatic, the driver doesn’t have to get out to clean their car. A semi-automatic method is also available. The whole process has voice prompt, guiding the customers to select their desired washing level. To ensure the security during the washing process, multiple protection switches are designed and self-diagnose system is also equipped to recognize and remove the mechanical obstacles. Following are the basic information about this automatic car wash system.

Parameters
Model CF-550
Dimension L*W*H:4.455m×3.907m×2.951m
Rail L*W: 11.900m×3.200m
Assembling Range L*W: 14.240mm×4.100mm
Moving Range L*W: 14700mm×4400mm
Voltage Voltage AC380V50Hz capacitance15KVA (total power 8.4KW)
Water Supply DN25mm water flow rate≥80L/min
Air Pressure 0.75~0.9Mpa/ air flow rate≥0.1m3/min
Ground Flatness Deviation≤10mm
Applicable Vehicles Sedan/jeep/minibus within 10 seats
Applicable Car Dimension L*W*H: 5.200m×2.300m×2.310m
Washing Time 0.5 rollover (70'') 1.5 rollover (2'20'')
Advantages
  • Multiple protection switches ensure the security and reliability during washing process.
  • Extreme high cost performance with service life exceeding 10 years.
  • Anti-explosion, auto-locking prompt and other prompts ensure the car security.
  • Simple operations and all washing modes can achieve Two-Click Car Washing.
  • Built-in self-diagnose system can recognize and remove obstacles during car washing.
  • Foam car brushes avoid damaging the vehicle.
Automatic Car Wash System CF-550 Configuration
Standard Devices Optional Devices
Shampoo spray system High-pressure water devices
Water wax spray system Undercarriage wash system
Contour-following drying system
Telescopic tire brushes
Self-diagnose system
Voice prompt system
Equipment data intellectualization
