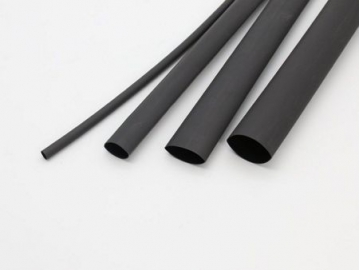

Dual Wall Heat Shrink Tubing, SBRS-(3X)H
Model: SBRS-(3X)H
Halogen free, adhesive-lined heat shrinkable polyolefin tubing

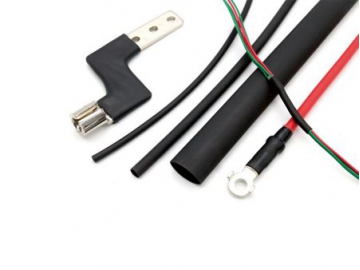

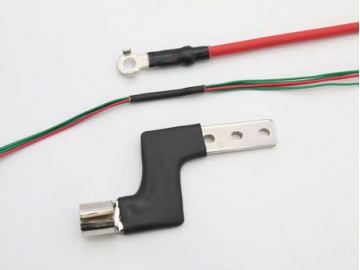

SBRS-(3X)H dual wall heat shrink tubing is halogen-free, adhesive-lined heat shrinkable polyolefin tubing that can be used in automotive and marine electrical applications to provide corrosion protection and environmental sealing electrical insulation of wire splices, wire harness bundles, breakouts and connector-to-cable transitions.
Features
- 3:1 shrink ratio
- Halogen free
- Super sealing against water, moisture or other contaminates
- Continuous operating temperature: -45℃～125℃
- Fully shrink temperature: ≥125℃
- Sony compliant
| Property | Test Method | Standard Performance |
| Tensile strength (MPa) | ASTM D 2671 | ≥10.4 |
| Elongation (%) | ASTM D 2671 | ≥300 |
| Tensile strength after aging (MPa) | UL224 158℃×168hr | ≥7.3 |
| Elongation after aging (%) | UL224 158℃×168hr | ≥200 |
| Flammability | ASTM D 2671 B | Self-extinguish within 30s |
| Dielectric strength (kV/mm) | IEC 60243 | ≥15 |
| Volume resistivity (Ω.cm) | IEC 60093 | ≥1×1014 |
| Property | Test Method | Standard Performance |
| Water absorption | ASTM D 570 | ＜0.5 |
| Softening point (℃) | ASTM E 28 | 90±5 |
| Peel strength (PE) | ASTM D 1000 | 120N/25mm |
| Peel strength (Al) | ASTM D 1000 | 80N/25mm |
| inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length (m/spool) |
| 3/32 | 2.4 | 2.4 | 0.8 | 0.85±0.15 | 0.40±0.10 | 200 |
| 1/8 | 3.2 | 3.2 | 1.0 | 0.95±0.15 | 0.40±0.10 | 200 |
| 3/16 | 4.8 | 4.8 | 1.6 | 1.10±0.15 | 0.40±0.10 | 100 |
| 1/4 | 6.4 | 6.4 | 2.2 | 1.20±0.15 | 0.45±0.12 | 100 |
| 5/16 | 7.9 | 7.9 | 2.7 | 1.35±0.15 | 0.50±0.12 | 100 |
| 3/8 | 9.5 | 9.5 | 3.2 | 1.45±0.20 | 0.50±0.12 | 50 |
| 1/2 | 12.7 | 12.7 | 4.2 | 1.70±0.20 | 0.50±0.12 | 1.22 or 25m/roll |
| 5/8 | 15 | 15 | 5.2 | 1.80±0.20 | 0.55±0.15 | 1.22 or 25m/roll |
| 3/4 | 19.1 | 19.1 | 6.3 | 2.00±0.20 | 0.55±0.15 | 1.22 or 25m/roll |
| 1 | 25.4 | 25.4 | 8.5 | 2.10±0.25 | 0.55±0.15 | 1.22 or 25m/roll |
| 1-1/4 | 30 | 30 | 10.2 | 2.20±0.25 | 0.60±0.15 | 1.22 or 25m/roll |
| 1-1/2 | 39 | 39 | 13.5 | 2.40±0.25 | 0.60±0.15 | 1.22 or 25m/roll |
| 2 | 50 | 50 | 17 | 2.70±0.25 | 0.70±0.15 | 1.22 or 25m/roll |
| 5/2 | 64 | 64 | 21 | 3.00±0.30 | 0.70±0.15 | 1.22 or 25m/roll |
| 3 | 75 | 75 | 25 | 3.00±0.30 | 1.00±0.20 | 1.22 or 25m/roll |
| 7/2 | 90 | 90 | 30 | 3.00±0.30 | 1.00±0.20 | 1.22 or 25m/roll |
| 4 | 100 | 100 | 34 | 3.00±0.30 | 1.00±0.20 | 1.22 or 25m/roll |
| 5 | 125 | 125 | 42 | 3.00±0.30 | 1.00±0.20 | 1.22 or 25m/roll |
