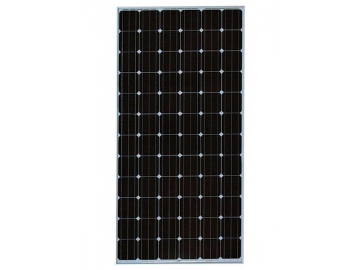

Monocrystalline Solar Panel 72P, 340-360W PV Module
Request a Quote
- 72
72 Monocrystalline Cells
- 340-360W
Power output
- 0~ 5W
Power tolerance
- Designed according to International Electrotechnical Commission standards, including IEC61215: 2005 and IEC61730: 2004
- High efficiency crystalline silicon solar cells are used.
- Through tests and demonstration, the quality of components, electrical property and life requirements are guaranteed.
- Long service life: ≧25 years, with low degradation rate.
- Excellent resistance to high wind loads and hail loads.
- High salt mist and ammonia resistance, free from environmental influence.
| Type | JY 340-72M | JY 345-72M | JY 350-72M | JY 355-72M | JY 360-72M |
| Peak Power(Pm) | 340W | 345W | 350W | 355W | 360W |
| Peak Voltage (Vm) | 38.7V | 38.9V | 39.1V | 39.3V | 39.5V |
| Peak Current (Im) | 8.79A | 8.87A | 8.94A | 9.04A | 9.12A |
| Open Circuit Voltage (Voc) | 47.1V | 47.3V | 47.5V | 47.8V | 48.0V |
| Short Circuit Current (Isc) | 9.24A | 9.31A | 9.38A | 9.45A | 9.51A |
| Size | 1956*992mm | ||||
| Weight | 26Kg | ||||
| Maximum System Current | 1000VDC | ||||
| Working Temperature Range | -40℃～85℃ | ||||
| Test Conditions | AM1.5;1000w/m²; 25℃ | ||||
JIEYANG produces a variety of solar panel components and dual glass panel components in a variety of specifications. They can also be designed and produced according to your requirements.
