Polycrystalline Solar Panel 60P, 280W-295W PV Module
Request a Quote
- 60
60 Polycrystalline Cells
- 280W-295W
Power output
- 0~ 5W
Power tolerance
- Advanced component manufacturing technology with high power output: up to 17.12% conversion rate.
- Use of anti-reflection glass: increase light absorption; The components feature a self-cleaning function on rainy days, effectively reducing power loss caused by dust.
- Excellent low-light power generation (day, evening and rainy day)
- High pressure resistance with 2400 pa wind pressure resistance and 5400 pa snow pressure resistance
- Excellent resistance to salt mist and ammonia corrosion: the whole series of components have passed TüV tests.
Reliable quality
Guarantee of power tolerance ranges from 0W to 5W
Two times EL inspections for all products to effectively eliminate defects
Optimize the current distribution of components to improve system power generation
Excellent resistance to potential attenuation
| Type | JY255-60P | JY260-60P | JY265-60P | JY270-60P | JY275-60P | JY280-60P |
| Peak Power(Pm) | 255W | 260W | 265W | 270W | 275W | 280W |
| Peak Voltage (Vm) | 31.20V | 31.40V | 31.60V | 31.70V | 31.90V | 32.10V |
| Peak Current (Im) | 8.18A | 8.28A | 8.39A | 8.52A | 8.63A | 8.73A |
| Open Circuit Voltage (Voc) | 37.8V | 38.0V | 38.2V | 38.4V | 38.6V | 38.8V |
| Short Circuit Current (Isc) | 8.62A | 8.74A | 8.86A | 8.98A | 9.11A | 9.22A |

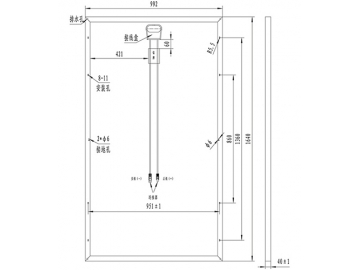

| Size | 1640*992mm | |||||
| Weight | 18.3Kg | |||||
| Maximum System Current | 1000VDC | |||||
| Working Temperature Range | -40℃~85℃ | |||||
| Test Conditions | AM1.5；1000w/m²；25℃ | |||||
