10T Truck Cranes, STSQ10D
Request a Quote

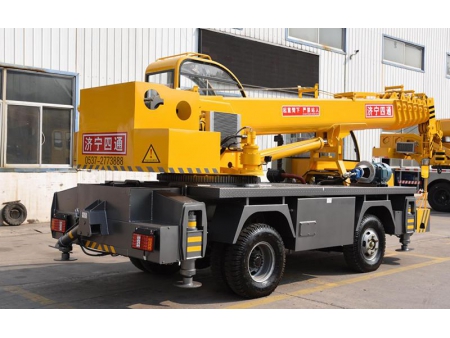

STSQ10D 10-ton truck-mounted crane adopts our self-made chassis, the maximum lifting height can reach 29m. The telescopic boom has a horizontal supporting cable that enables the boom to be freely extended and retracted in horizontal position. This truck-mounted crane is configured with 15kW motor, double-section stabilizer legs and 360-degree rotating platform, making the crane truck to work stably and efficiently in confined locations.
Features
- The truck-mounted crane has maximum loading capacity of 1.6 ton when the boom is fully extended, the maximum lifting height of 29m, the maximum working radius of 21m, and outrigger span of 6.66m*5.7m, providing better stability than other mobile cranes with equivalent load capacity;
- The overall length of the truck crane is 7.8m, the small turning radius makes it suitable for difficult-to-access worksites;
- Reasonable design of telescopic boom allows it to be extended to any length for adapting to the actual needs of application;
- 360-degree rotating platform;
- Max. loading capacity
- 10t
- Max. lifting height
- 29m
- Longitudinal outrigger span
- 5.7m
- Transversal outrigger span
- 6.66m
- Boom
- 7 sections (5m per section)
- Frame extension length
- 1.3m
- Dimensions
- 7.8m*2.1m*2.95m
- Motor power
- 15kW, 380V, 50Hz, 3 Phase
- Slewing speed
- 0-3r/min
- Engine power
- 51kW
- Tyres
- 825-20
- Wheelbase
- 2.33m
- Crane weight
- 11.2t
