Intelligent High Speed Rigid Box Making Machine, LY-2500CK
Complete box line for manufacturing set-up boxes and drawer boxes
This LY-2500CK, our intelligent intelligent high speed rigid box making machine, has been equipped with IoT technology, enabling real-time monitoring of equipment operation status, parameter information, gas and electricity consumption, ensuring maximum efficiency.

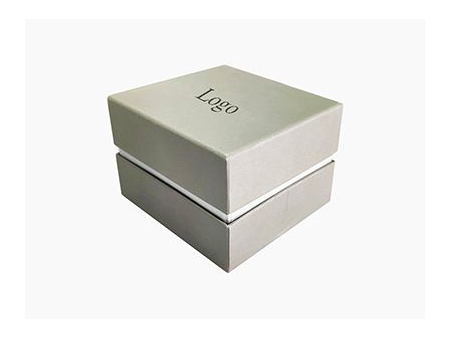

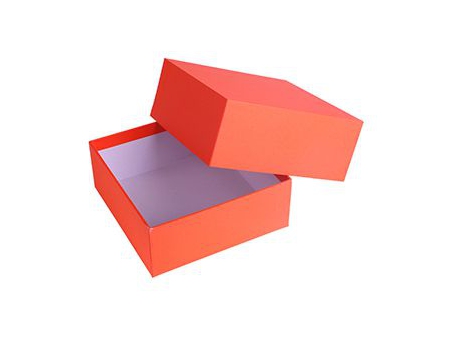

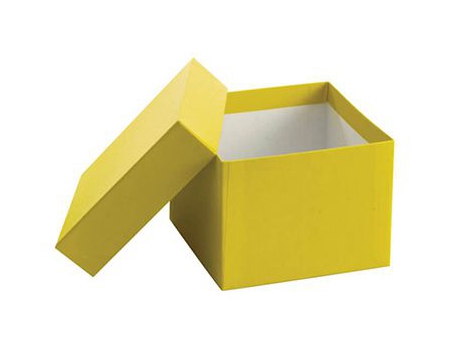

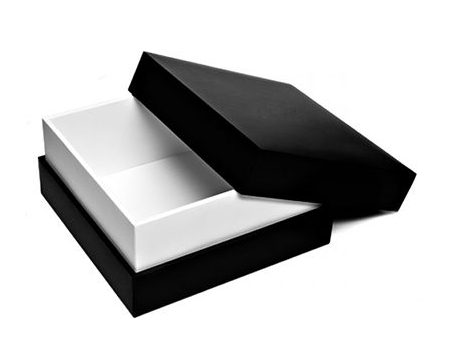

The box making machine features a state-of-the-art servo control system coupled with an advanced image positioning system, allowing for fully automated feeding, gluing, cardboard inserting, corner pasting, positioning, box grabbing, edge wrapping, folding, and forming. With its ability to create various types of set-up boxes, such as phone boxes, cosmetic boxes, jewelry boxes, wine boxes, and more, this box machine is perfect for any box maker looking to streamline their production process.
Besides exceptional performance, the LY-2500CK intelligent high speed rigid box making machine also boasts an attractive new design that is both sleek and safe.
Features
- Space-saving for its feature of double head box forming
- 100%-coordinated pace of manufacturing the top and the bottom box pieces
- High-precision visual positioning with a positioning accuracy of up to ±0.05mm
- Friendly UI and operability thanks to full intelligent PLC control
- Top manufacturing speed of 40-45 pieces per minute
- Lowered cost without the need of replacing blades and press plates
- Higher production efficiency thanks to its smart mode switch
| Working Mode | Single-station Box Making | Double-station Box Making | |
| Paper Size | L | 120 mm-880 mm | 120 mm-880 mm |
| W | 60 mm-800 mm | 60 mm-370 mm | |
| Paper Thickness | 80-300 g/㎡ | ||
| Pile Height | 800 mm | ||
| Cardboard Thickness | 1-3 mm | ||
| Finished Box Size | L | 55 mm-380 mm | |
| W | 55 mm-280 mm | ||
| H | 15 mm-120 mm | ||
| Positioning Accuracy | ±0.05 mm | ||
| Manufacturing Speed | 40-45 pcs/min | ||
| Glue Container Volume | 50 KG | ||
| Air Pressure | 175 L/min | ||
| Weight | 7200 KG | ||
| Overall Size (L*W*H) | 8000 mm*4000 mm*3500 mm | ||
- Paper Feeder
- Full servo controlled dual feeders ensure feeding stability.
- Front-suctioning and rear-blowing feeders avoid double-sheet feeding.
- 620mm wide glue roller allows feeding single or double-sided paper simultaneously.

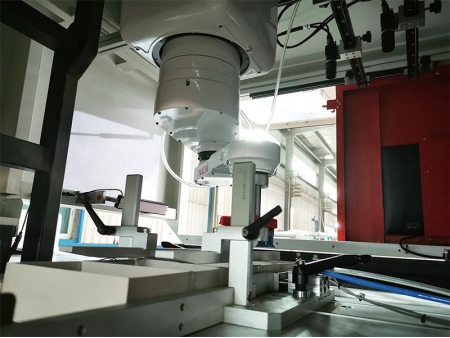

- Robotic Arm
- Robotic arm can pick up two boxes at once with positioning accuracy reaching±0.05 mm.

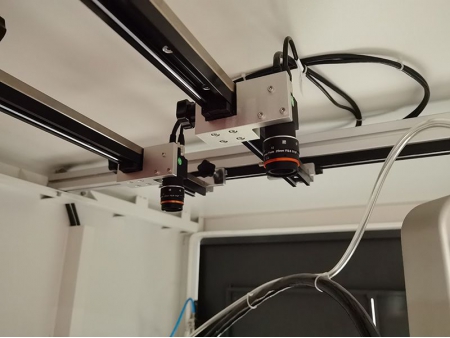

- HD Visual Positioning
- HD visual positioning plus Japan-made robotic arm allow the top manufacturing speed of 50 pieces per minute.

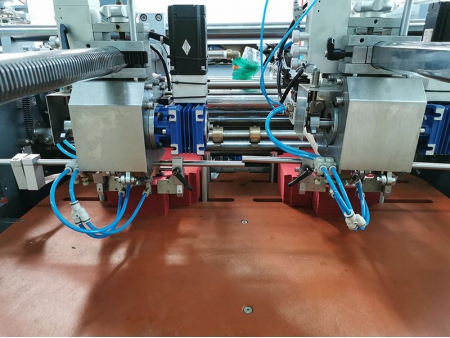

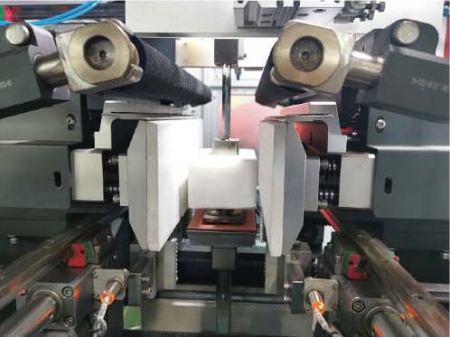

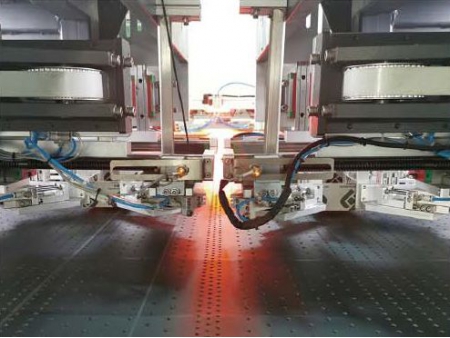

- Double Head Box Forming
- Double head box forming allows the top and bottom of a box made at the same time.
- The box making machine is fully controlled by servo, allowing easy mode switch in just 5 minutes.

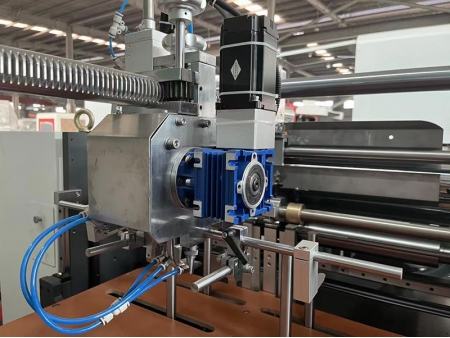

- Double-Layer Edge Folding
- This rigid box machine is designed with double-layer edge folding which stabilizes the blade, brush and press plate, saving manufacturing costs.
- The box making machine is fully controlled by servo, and each part can be adjusted through the digital display screen. The high accuracy reduces the need for operators to have technical expertise.

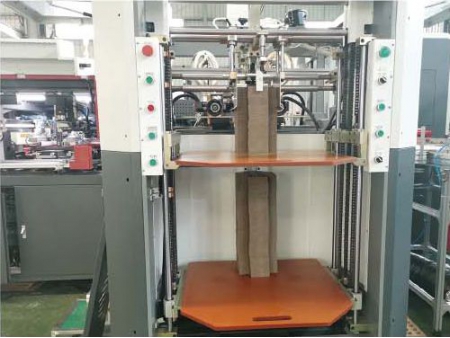

- Continuous Feeding with Dual Pallets
- Feeder allows fast and stable delivery of papers, capable of manufacturing rigid boxes with magnetic closures.
- Continuous feeding prevents costly production downtimes and increases production efficiency.
