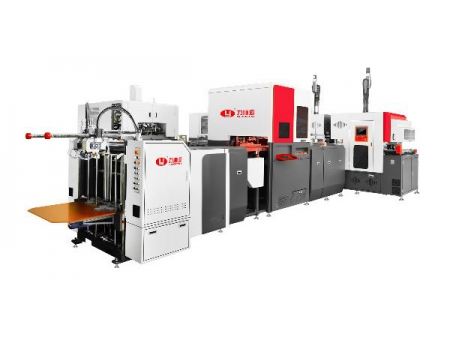

Intelligent 2 in1 High Speed Rigid Box Making Machine, LY-3000CQ

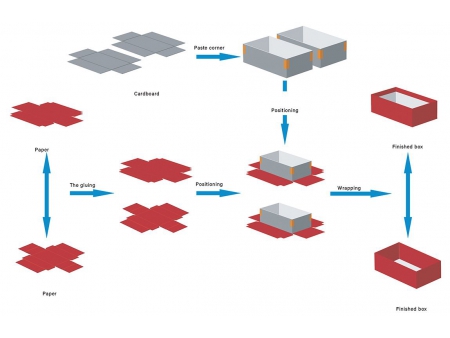

Complete box line for manufacturing two-piece rigid boxes
- Working mode: single-station box making or double-station box making
- Single station working speed: 56 pcs/min
- Double station working speed: 26 pairs
- Paper thickness: 80-300 g/m²
- Paper pile height: 800 mm
- Cardboard thickness: 1-3 mm

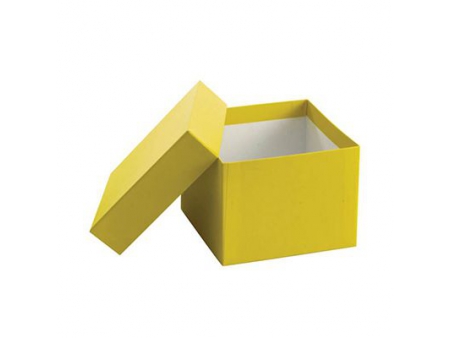

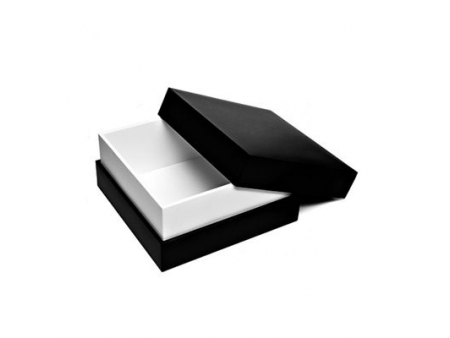

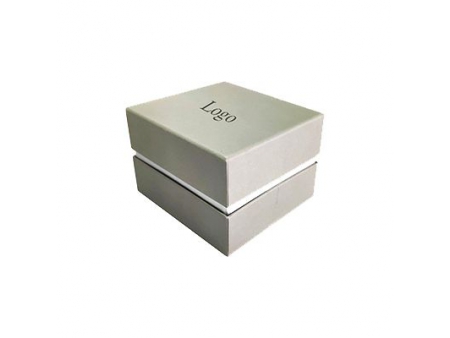

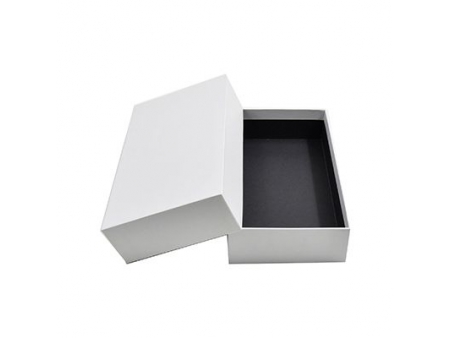

The LY-3000CQ intelligent automatic 2 in 1 rigid box making machine was designed and developed by Lishunyuan in response to market demand. Based on over ten years of experience in the design and production of high-end box making machine, the 3000CQ underwent two years of development before its release. The rigid box making machine can simultaneously produce top and bottom pieces at a 100% coordinated pace with an industry-leading production speed of 60 pieces per minute. This feature saves the room for the factory and improves the efficiency, making the 3000CQ rigid box production line perfect for producing a variety of products such as phone boxes, cosmetic boxes, jewelry boxes, mooncake boxes, and tea boxes.
Features- The rigid box making machine uses high-precision visual positioning to precisely locate objects with an accuracy of up to 0.05 millimeters.
- The intelligent PLC control makes the box making machine easy to operate with a user-friendly interface.
- The dual stations can function independently, reducing downtime in case of any malfunction.
- The automatic box making machine is suitable for making high-quality paper boxes by interlocking or overlapping the short flaps of the box.
- An innovative adhesive application method is available in the rigid box machine, applicable for both white glue and hot melt adhesive.
| Working Mode | Single-station Box Making | Double-station Box Making | |
| Paper Size | L | 120 mm-880 mm | 120 mm-880 mm |
| W | 60 mm-800 mm | 60 mm-370 mm | |
| Paper Thickness | 80-300 g/㎡ | ||
| Pile Height | 800 mm | ||
| Cardboard Thickness | 1-3 mm | ||
| Finished Box Size | L | 55 mm-380 mm | |
| W | 55 mm-280 mm | ||
| H | 15 mm-120 mm | ||
| Positioning Accuracy | ±0.05 mm | ||
| Manufacturing Speed | 50-60 pcs/min | ||
| Glue Container Volume | 50 KG | ||
| Air Pressure | 175 L/min | ||
| Weight | 7500 KG | ||
| Overall Size (L*W*H) | 10000 mm*6000 mm*3500 mm | ||
- All computer-based settings
- Troubleshooting
- Automatic feeding of papers and cardboards
- 24-hour control for preheating glue
- 999 built-in formulas in the machine
- INOVANCE servo control system
- Automatic box lifting and retrieval
- Separate HMI (human machine interface) of box heat-sealing
- Automatic system of adhesive viscosity control (optional)
- Convertibility to be equipped with cardboard splicing machine (optional)
- Image positioning system and robotic picking & placing (with an error of ±0.05 mm)

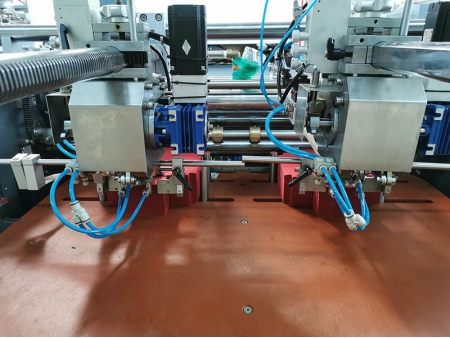

- Double Feeders
- Full servo controlled dual feeders ensure feeding stability.
- Front-suctioning and rear-blowing feeders avoid double-sheet feeding.
- 820-mm-wide glue roller allows feeding single or double-sided paper simultaneously.

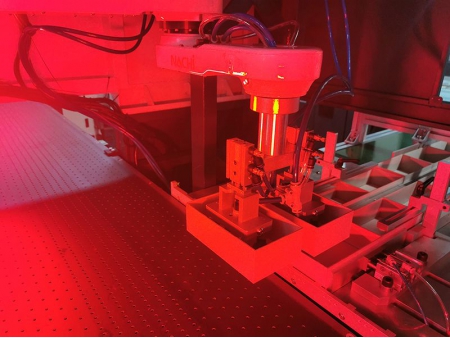

- HD Visual Positioning
- HD visual positioning plus Japan-made robotic arm allow the top manufacturing speed of 60 pieces per minute.
- Robotic arm can pick up two boxes at once with positioning accuracy reaching±0.05 mm.

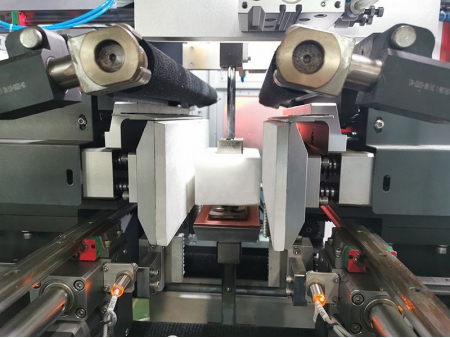

- Double Head Box Forming
- Double head box forming allows the top and bottom of a box made at the same time.
- Each forming head can operate independently. When there is a small order, it can run on one side only, saving production costs.
- The rigid box making machine is fully controlled by servo, allowing easy mode switch in just 5 minutes.

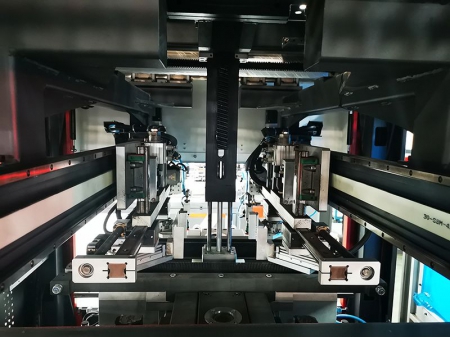

- Double-Layer Edge Folding
- This automatic box making machine is designed with double-layer edge folding which stabilizes the blade, brush and press plate, saving manufacturing costs.
- The box making machine is fully controlled by servo, and each part can be adjusted through the digital display screen. The high accuracy reduces the need for operators to have technical expertise.

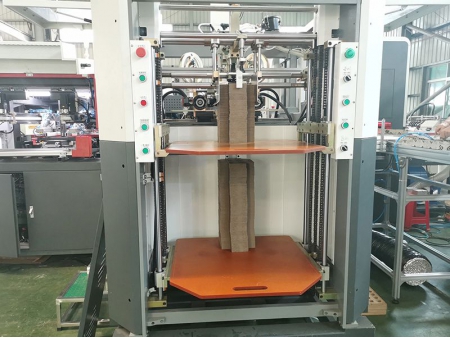

- Continuous Feeding with Dual Pallets
- Feeder allows fast and stable delivery of papers. Capable of manufacturing rigid boxes with magnetic closures.
- Continuous feeding prevents costly production downtimes and increases production efficiency.
LISHUNYUAN provides all kinds of components in the rigid box production line. The products include visual positioning machines, feeding and gluing machines, notching machines, and etc.
