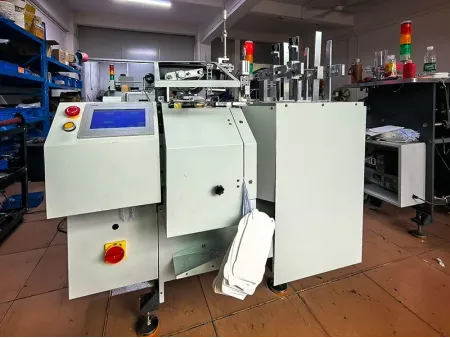

Automatic Hang Tag Elastic Stringing Machine (Side-Hole Punching), TL-UM8C
Designed with a side-position punching system, the automatic large-sized hang tag stringing machine is an innovative piece of equipment independently developed by our company for commonly used European- and American-style hang tags. It supports a maximum tag size of 160×210 mm (width × length).
The machine automatically completes tag loading, side-position hole punching, stringing, knotting, and counting in a single integrated process. Completing all operations in a single process significantly improves production efficiency while effectively reducing labor costs.
The stringing machine is easy to operate and quick to learn, with the standard and optional configurations including: PLC system, touch screen, frequency inverter, sensors, servo motor, optional button control.
| Hang Tag Stringing Machine | |
| Model | TL-UM8C |
| Speed | 2500-3000pcs/hr |
| Cutting method | Cold cut |
| Weight | 450kg |
| Dimensions | 1100*1150*1300mm |
| Power supply | 220V, single phase, 50/60Hz |
| Power | 0.75kW |
| Hang Tag | |
| Tag material | Paper tag, plastic tag |
| Tag thickness | 200gsm-700gsm (for other thickness options, the machine is customizable per your sample) |
| Min. tag size | 80*90mm |
| Max. tag size | 160*210mm |
| Tag hole diameter | 3.0mm, 4.0mm, 5.0mm |
| Tag shape | Rectangle, square, round, oval, and other regular shapes |
| String thickness | 0.3-1.2mm |
| String material | Elastic string, cotton string, gold thread, fiber string, nylon string, etc. |
| Knotted string working length | 80-200mm (tail is excluded) |
| Knotted string tail length | 15mm |
