Request a Quote
  • Raw materials LDPE, LLDPE, HDPE, PP, EVA
  • Film thickness range 0.02-0.20mm
  • Net film width From 1000mm up to 4000mm
  • Film structure 1-layer, 2-layer, 3-layer, 5-layer
Applications

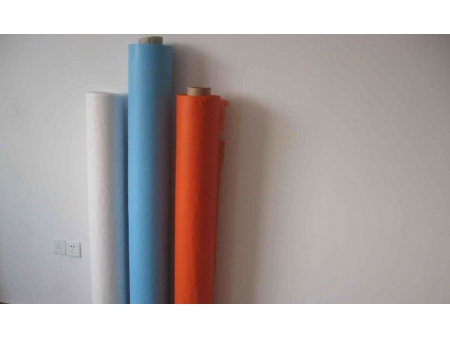

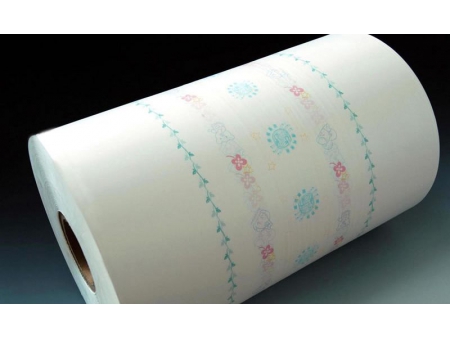

The multi-layer co-extrusion process is used to produce hygiene films, CPP film, stretch film, cling film, masking film, agricultural films, medical films, barrier films for packaging food such as meats, snack, bakery, frozen foods, and so forth.

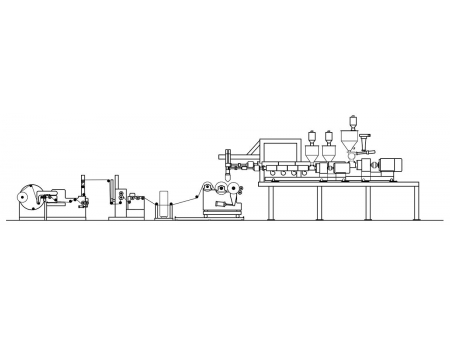

Line Layout
Technical Parameters
Model No.
FMC65/110/65-1600
FMC65/120/65-2000
FMC90/150/90-3000
Screw Dia. 65mm/ 110mm/ 65mm 65mm/ 120mm/65mm 90mm/ 150mm/ 90mm
Die Width 1800mm 2300mm 3300mm
Film Width 1500mm 2000mm 3000mm
Film Thickness 0.02-0.150mm 0.02-0.150mm 0.02-0.150mm
Line Speed 250m/min 250m/min 250m/min

* Remarks: The film width and number of film layer are upon your request.

Overview

Our multi-layer cast film line uses co-extrusion to optimize film performance for hygiene, medical and packaging application by using LDPE, LLDPE, HDPE, PP, and EVA. The lines offer many options, such as 2-layer, 3-layer, and 5-layer film coextruded structure. The number of co-extrusion layers depends on the market need.

The multi-layer co-extrusion cast film line can be customer made for different purposes. The most regular cases are hygiene films, CPE laminating film, CPP film, stretch film, EVA film and PEVA film.

Varying from reducing resin cost to improving film properties and appearance, the advantages of co-extrusion are versatile: to improve film tensile force; to improve heat sealability and printability; to reduce resin cost by using the recycled or re-processed in an inner film layer; to produce two-color film using different color resins.

Features
  • Any film width (up to 4000mm) at customer’s option.
  • Very low variation of film thickness
  • In-line film edge trim and recycling
  • In-line extrusion coating is optional
  • Auto film winder with difference sizes of air shaft
