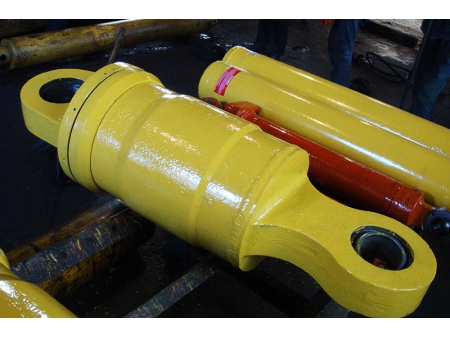

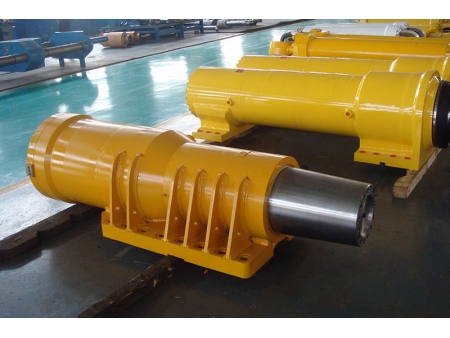

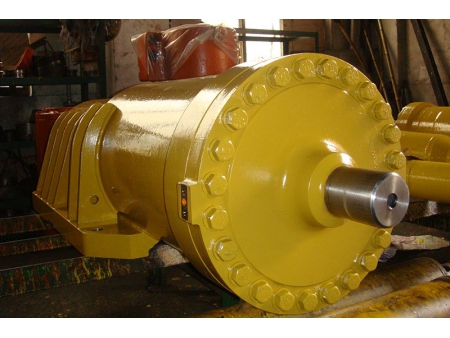

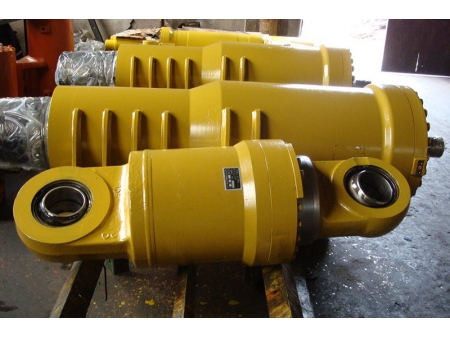

Hydraulic Cylinders for Caterpillar Heavy Equipment

Hydraulic Cylinders for Caterpillar Heavy Equipment
Hydraulic Cylinders for Caterpillar Heavy Equipment
Hydraulic Cylinders for Caterpillar Heavy Equipment
Hydraulic Cylinders for Caterpillar Heavy Equipment
Hydraulic Cylinders for Caterpillar Heavy Equipment
Request a Quote

JC-Hydraulic is committed to manufacturing and repairing hydraulic cylinders for a variety of mining and construction equipment. With years of experience in the open-pit mining industry, the company can design and produce hydraulic cylinders for various types of heavy equipment, such as construction machinery cylinders, metallurgical equipment cylinders, vehicle cylinders, and more. Our hydraulic cylinders are suited to off-road dump trucks, bulldozers, and other construction equipment from domestic and international brands like Caterpillar and Komatsu, and the reliable performance is highly appreciated by our customers worldwide. We will keep putting in a lot of effort in the future to fulfill our goal of becoming a top manufacturer of hydraulic cylinders for the open-pit mining sector.

What we offer

Front suspension cylinder assembly, rear suspension cylinder assembly, hoist cylinder assembly, steering cylinder assembly and related spares

Hydraulic Cylinders for Caterpillar Mining Equipment

No. Product Application
1 Hoist Cylinder 777/785/789/793 Dump Truck
2 Steering Cylinder
3 Front Suspension Cylinder
4 Rear Suspension Cylinder

Hydraulic Cylinders for Caterpillar Construction Machinery

No. Product Application
1 Blade Lift Cylinder D9L/D10N/D10T/D11T Bulldozer
2 Blade Tilt Cylinder
3 Ripper Lift Cylinder
4 Ripper Tilt Cylinder
5 Steering Cylinder 834B Wheel Dozer
6 Lift Cylinder
7 Tilt Cylinder
8 Steering Cylinder 992C/994 Wheel Loader
9 Hoist Cylinder
10 Tilt Cylinder
Hydraulic Cylinder Spares

Cylinder barrel, piston rod, gland, one-stage cylinder, two-stage cylinder

Q&A

The biggest cylinder’s bore diameter is 1,000mm. Its working pressure is 31.5MPa and the stroke range is 6,000mm.

All the cylinder seals come from international brands like SKF, NOK and Parker.

Suspension cylinder assemblies are usually installed on the frame of electric wheel dump trucks to bear loads, cushion and eliminate vibration, enabling the vehicles to run smoothly, increasing the running speed and improving the driving experience.

JC-Hydraulic now has over 500 staff and 13% of them are qualified engineers. Our company has a technology center recognized in Shanxi Province. We have taken out 16 utility model patents and one invention patent by far.

JC-Hydraulic is also backed by a team of experienced professionals, dedicated drawing software, CNC processing center and thermal treatment equipment for product designing, manufacturing and repairing. With a complete set of testing and measuring equipment, we are able to test thickness, surface roughness and hardness as well as to carry out chemical substance tests, salt fog tests and macrostructure tests. To conclude, JC-Hydraulic has nearly three decades of experience in designing and manufacturing hydraulic cylinders.

Our product quality is achieved by adopting high-end processing equipment, advanced testing methods and a scientific management system of ISO 9001: 2015.
