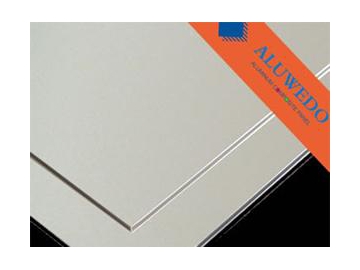

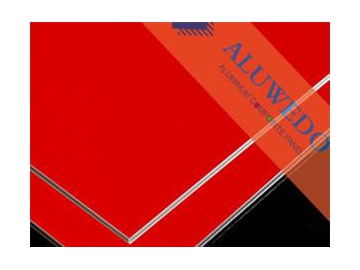

Matt PE Surface Coating Aluminum Composite Panel, PE Coating ACP Panel
Application
The PE coated aluminum composite panel has a matt effect, which is mainly applied in wall decoration, doors, and advertising boards. Different applications might require different slot designs.
Features
Our matt PE coated aluminum composite panel gets rid of the disadvantages of traditional ACP and possesses many extra outstanding properties, like, gorgeousness, decorativeness, weather resistance, corrosion resistance, impact resistance, humidity resistance, thermal resistance, vibration resistance, fire-proof and sound-proof, light weight, workability, and easy to install and transport, while not sacrificing the original strength of its raw materials – aluminum and PE materials.
| Specifications Of Aluminum Composite Panel | |
| Normal Width | 1220mm,1250mm,1500mm,1570mm, 2000mm |
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm |
| Aluminum Alloy | AA1100,AA3003,AA5005(Other Grade On Requirements) |
| Aluminum Skin Thickness | 0.08mm ~ 0.60mm |
| Coating | PE/PVDF/FEVE/NANO/Anti-scratch/Mill |
| PE Core | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |
| Color | Solid/ Glossy/Matt/Metallic/Marble/Wooden/Brush/Mirror/Embossed |
| Length | 5800mm in maximum for 20ft container |
| Delivery | 15 to 20 days after order confirmed and receiving deposit |
| MOQ | 600 to 1000 m2 per color |
| Brand/OEM | ALUWEDO®/ Customized |
| Payment Terms | T/T/ L/C at sight/We5stern Union |
| Packing | By bulk; In Wooden Package |
| Surface Properties: | |
| Paint Thickness (micron) | 20 |
| Pencil Hardness | >HB |
| Toughness of Coating | 3T |
| Temperature Resistance | -50˚C to +90˚C |
| Impact Strength (kg cm 2 ) | 50 |
| Boiling Water Resistance | Boiling for 2hrs without change |
| Acid Resistance | Immerse Surface in 2% HC1 for 24hrs without change |
| Alkali Resistance | Immersed surface in 2% NaOH for 24hrs without change |
| Oil Resistance | Immerse Surface in 20# engine oil for 24hrs without change |
| Solvent Resistance | Cleaned 100 times with Dimethylbenzene without change |
| Cleaning Resistance | >1000 times without change |
| Peel Strength 180˚ | >5 Newton / mm |
| Testing Item | Standard | Result |
| Unit Weight | ASTM D792 | T 3mm=4kg/m2 |
| Thermal Expansion | ASTM D696 | 24-28 |
| Thermal Deformation Temperature | ASTM D648 | 115℃ |
| Thermal Conduction | ASTM D976 | 0.102kcal/m.hr℃ |
| Flexural Rigidity | ASTM D393 | 14.0*10^5 |
| Impact Resistance | ASTM D732 | 1.64kgf |
| Adhesive Strength | ASTM D903 | 0.77kg/mm |
| Flexural Elasticity | ASTM D790 | 4030kg/mm2 |
| Shear Resistance | ASTM D732 | 2.7kgf/mm2 |
| Fire Propagation | ASTM E84 | Qualified |
| Wind-Pressure Resistant | ASTM E330 | Passed |
| Properties Against Water | ASTM E331 | Passed |
Description
Different from glossy PE coated aluminum composite panel, the aluminum composite panel has a matt effect rather than a glossy effect. So it is mainly installed on walls, doors, and advertising boards. ACPs of this series are of varied colors. If required, panels of different colors could be used together. Meanwhile, aluminum composite panel of this type could be cut, slotted, processed and shaped according to the desired style.
Aluwedo is a reliable matt PE surface coating aluminum composite panel manufacturer and supplier, offers a wide range of interior and exterior decorative ACP panels for customers. Our aluminum composite panels can be used as architectural wall cladding, building façade, advertising signage, commercial entryway, etc. From the raw material selection, panel manufacturing and surface coating, each step is under strict control, we are sure to offer quality PE coating ACP composite panels with competitive prices.
