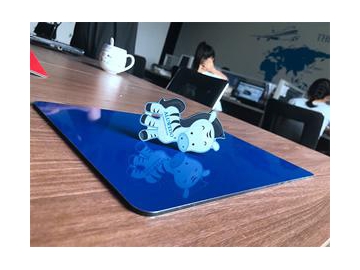

Multicolor PE Coated Aluminum Composite Panel
Application

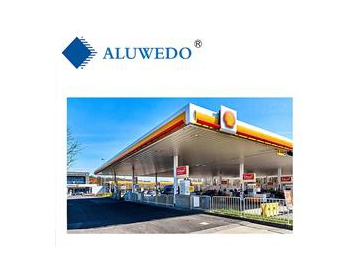

Multicolor PE coated aluminum composite panel is mainly applied in places where special design is required, like the advertising board in petrol station.
Features
Multicolor PE coated aluminum composite panel gets rid of the disadvantages of traditional ACP and possesses many extra outstanding properties, like, gorgeousness, decorativeness, weather resistance, corrosion resistance, impact resistance, humidity resistance, thermal resistance, vibration resistance, fire-proof and sound-proof, light weight, workability, and easy to install and transport, while not sacrificing the original strength of its raw materials – aluminum and PE materials.
| Specifications Of Aluminum Composite Panel | |
| Normal Width | 1220mm,1250mm,1500mm,1570mm, 2000mm |
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm |
| Aluminum Alloy | AA1100,AA3003,AA5005(Other Grade On Requirements) |
| Aluminum Skin Thickness | 0.08mm ~ 0.60mm |
| Coating | PE/PVDF/FEVE/NANO/Anti-scratch/Mill |
| PE Core | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |
| Color | Solid/ Glossy/Matt/Metallic/Marble/Wooden/Brush/Mirror/Embossed |
| Length | 5800mm in maximum for 20ft container |
| Delivery | 15 to 20 days after order confirmed and receiving deposit |
| MOQ | 600 to 1000 m2 per color |
| Brand/OEM | ALUWEDO®/ Customized |
| Payment Terms | T/T/ L/C at sight/Western Union |
| Packing | By bulk; In Wooden Package |
| Technical properties | ||||
| Section modulus | W | DIN 53293 | [cm³/m] | 1.75 |
| Rigidity | E·J | DIN 53293 | [kNcm²/m] | 2400 |
| Alloy / Temper of Aluminum Layers | EN 573-3 EN 515 | A3003H18 | ||
| Modulus of Elasticity | EN 1999 1-1 | [N/mm²] | 70.000 | |
| Tensile Strength of aluminum | EN 485-2 | [N/mm²] | Rm ≥ 130 | |
| 0.2 % Proof Stress | EN 485-2 | [N/mm²] | Rp0,2 ≥ 90 | |
| Elongation | EN 485-2 | [%] | A50 ≥ 5 | |
| Linear Thermal Expansion | EN 1999 1-1 | 2.4 mm/m at 100ºC temperature difference | ||
| Core | ||||
| Mineral filled polymer | ||||
| Surface | ||||
| Coating | Fluorocarbon (e.g. PVDF Kynar 500 ) | |||
| Coating thickness | um | >32(3 coating) > 25 ( 2 coating) | ||
| Gloss (initial value) | EN 13523-2 | [%] | 30-60 | |
| Pencil Hardness | EN 13523-4 | HB-F | ||
Description

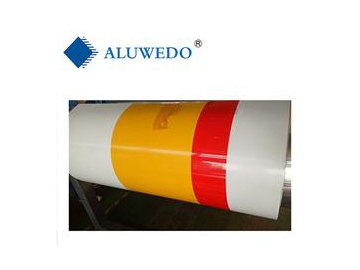

Multi-color PE coated aluminum composite panel allows multi-color coating in single panel with reduced production cost and material loss. The creation of multi-color aluminum composite panel brings an extra choice for direction signs, warning signs and many other signs.
Aluwedo is a reliable multicolor PE coated aluminum composite panel manufacturer and supplier, offers a wide range of interior and exterior decorative ACP panels for customers. Our aluminum composite panels can be used as architectural wall cladding, building façade, advertising signage, commercial entryway, etc. From the raw material selection, panel manufacturing and surface coating, each step is under strict control, we are sure to offer quality PE coating ACP composite panels with competitive prices.
