Solvent Washable Flexo Printing Plates

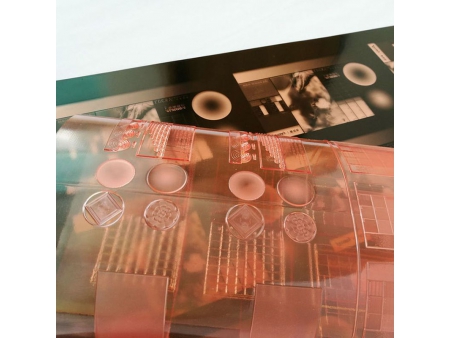

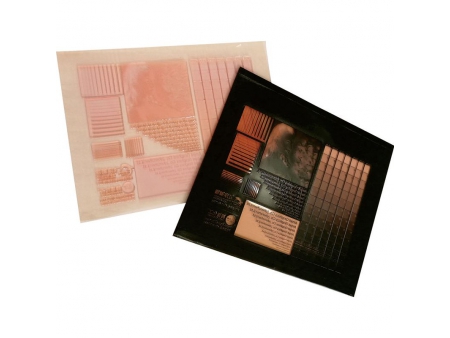

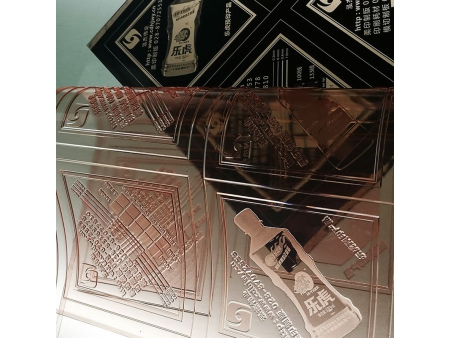

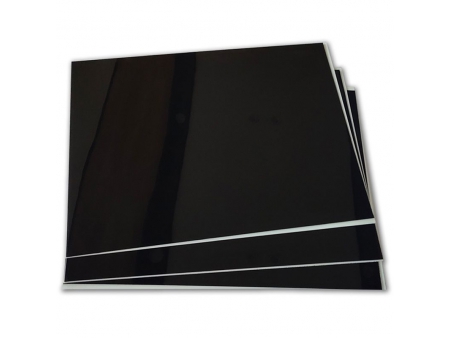

Digital flexographic printing plate
Digital flexo printing plate is made by placing plate material directly on a computer-to-plate (CTP) machine, where image data is transferred to a laser that emits a beam to corrode the black film. The result is a desired image formed on the printing plate surface.
Digital flexographic printing offers low production costs and flexible process combinations. MERIT provides flexographic plates in varying thicknesses, including 3.94mm, 2.84mm, 2.28mm, 1.7mm, and 1.14mm, for pre-printing in flexible packaging, high-end color boxes, corrugated boxes, label stickers, handbags, beverage containers, books, and magazines.
Our digital flexographic printing plates offer excellent flexibility, good ink transferability, soft highlights and shadow gradients, ensuring vivid color reproduction and a wide color gamut. The printing effect is clear and delicate, and less printing pressure is required for desired printing quality, which increases the life of the plates, and improves overall printing efficiency. Our digital flexo plates are also environmentally friendly, efficient, and produce exquisite prints.
MERIT can customize production of digital flexographic printing plate based on different thicknesses and usage requirements of customers to achieve optimal results.
- 1.14mm
- 1.7mm
- 2.28mm
- 2.84mm
- 3.94mm
- Sizes
- 762mm×1016mm
- 1067mm×1524mm
- 1270mm×2032mm
- Hardness (°A): 75
- Image Reproduction (60 L/cm): 1-99%
- Min. Isolated Dot Size (μm): 100
- Min. Positive Line Width (mm): 0.1
- Recommended Relief Depth (mm): 0.5-0.6
- Exposure Light Source: Ultraviolet A
- Availability for Digital Imaging System: YES
- Plate Cleaner: Tetrachloroethylene/butyl alcohol 3:1 solution
- Tolerance Range of Raw Material Thickness (μm): /-30
- Suitable Ink: Water-based ink
- Flexible packaging / thin film printing
- Handbags
- Labels / signs
- Paper / folding boxes
- Beverage containers
- High resolution and high printing accuracy
- High adaptability to different printing processes
- Excellent ink transferability with smooth printing results
- Wide exposure latitude without the use of mask
- Moderate plate hardness and uniform thickness ensuring good printing quality
- High resistance to sunlight and ozone, suitable for long-time storage
- Sizes
- 762mm×1016mm
- 1067mm×1524mm
- 1270mm×2032mm
- Hardness (°A): 63, 73
- Image Reproduction (L/cm): 1-98%
- Min. Isolated Dot Size (μm): 100
- Min. Positive Line Width (mm): 0.1
- Recommended Relief Depth (mm): 0.5-0.7
- Exposure Light Source: Ultraviolet A
- Availability for Digital Imaging System: YES
- Plate Cleaner: Tetrachloroethylene/butyl alcohol 3:1 solution
- Tolerance Range of Raw Material Thickness (μm): /-30
- Suitable Ink: Water-based Ink
- Flexible packaging / thin film printing
- Handbags
- Labels / signs
- Paper / folding boxes
- Beverage containers
- Breathable film
- Stamp
- Wide exposure latitude
- Fast photosensitivity
- High resolution and high printing accuracy
- Good resistance to ozone
- Low surface stickiness, easy to remove adhesives
- High printing quality
- Sizes
- 1067mm×1524mm
- 1270mm×2032mm
- Hardness (°A): 60
- Image Reproduction (175 L/cm): 1-99%
- Min. Isolated Dot Size (μm): 130
- Min. Positive Line Width (mm): 0.08
- Recommended Relief Depth (mm): 0.45-0.6
- Exposure Light Source: Ultraviolet A
- Availability for Digital Imaging System: YES
- Plate Cleaner: Tetrachloroethylene/butyl alcohol 3:1 solution
- Tolerance Range of Raw Material Thickness (μm): /-30
- Suitable Ink: Water-based ink
- Flexible packaging
- Labels and stickers
- Folding boxes
- Beverage containers
- Excellent anti-solvent performance
- Wide dynamic range
- Little size change of halftone dots
- Strong resistance to ozone and sunlight
- Outstanding ink transferability
- High resolution
- Sizes
- 1067mm×1524mm
- 1270mm×2032mm
- 1320mm×2032mm
- Hardness (°A): 40±2
- Image Reproduction (48 L/cm): 2-95%
- Min. Isolated Dot Size (μm): 250
- Min. Positive Line Width (mm): 0.175
- Recommended Relief Depth (mm): 0.8-2.0
- Exposure Light Source: Ultraviolet A
- Availability for Digital Imaging System: YES
- Plate Cleaner: Tetrachloroethylene/butyl alcohol 3:1 solution
- Tolerance Range of Raw Material Thickness (μm): /-40
- Suitable Ink: Water-based ink
- Printing on corrugated boxes
- High adaptability to printing processes
- Outstanding ink transferability
- Sharp halftone dots with excellent image reproduction
- Sizes
- 1067×1524mm
- 1270×2032mm
- 1320×2032mm
- Hardness (°A): 38
- Image Reproduction (36 L/cm): 3-95%
- Min. Isolated Dot Size (μm): 500
- Min. Positive Line Width (mm): 0.175-0.250
- Recommended Relief Depth (mm): 1.00-1.50
- Exposure Light Source: Ultraviolet A
- Availability for Digital Imaging System: YES
- Plate Cleaner: Tetrachloroethylene/butyl alcohol 3:1 solution
- Tolerance Range of Raw Material Thickness (μm): /-40
- Suitable Ink: Water-based ink
- Corrugated boxes
- Papers
- Carboards
- High exposure tolerance
- Strong flexibility with less ribboned patterns when printing corrugated boxes
- Clear image and precise printing
- Excellent ink transferability and color reproduction
- Strong printing durability
- Store the flexo plates in a location that is not exposed to sunlight or UV light.
- Control the temperature between 5℃-35℃.
- After finishing printing, clean ink on the surface of the flexo plate as quickly as possible and allow the plate to completely dry.
- Avoid stacking flexo plates on top of each other; instead, separate them using paper or buffering material.
- Maintain good ventilation conditions in the storage room to prevent moisture accumulation.
- Use cleaning agents that will not cause photopolymer expansion.
- If unsure about the characteristics of the cleaning agent, consult our authorized suppliers of flexo printing plates.
