DMF-Z-DD Series Cast Aluminum 2/2-Way Solenoid Valve
- Pilot Operated, Normally Closed
- Port Size: 3/4"–3"
- Fluid Temperature: -5°C to 55°C (-40°C to 80°C)
- Operating Pressure: 0.3–0.8MPa
- Media: air
The DMF-Z-DD series is a normally closed (NC), right-angle, pilot-operated pulse solenoid valve designed for industrial dust collection systems. It adopts a 90° airflow channel and an aerospace-grade cast-aluminum body that is compact, corrosion-resistant, and wear-resistant. This valve's patented snap-ring design allows fast coil replacement without tools and easy maintenance. A precision internal diaphragm mechanism ensures stable operation for up to one million pulse cycles, significantly improving system reliability and cleaning efficiency.
- 90° right-angle structure simplifies pipeline layout and saves installation space
- Aerospace-grade cast-aluminum body offers superior corrosion and wear resistance for harsh industrial conditions
- Customizable sealing materials and diaphragms to support a wide range of temperature operating conditions (e.g., cement-kiln exhaust or low-temperature food-processing)
- NPT standard thread and flange mounting options with a special nut design for easy installation.
- Optional explosion-proof (ATEX-certified) models and anti-vibration mounting components for high-noise or explosion-prone environments
This valve supports high- and low-temperature dust collection systems across industries with heavy dust concentration and high humidity. It is suitable for handling wood dust, abrasive powders, and other fine particulates, especially in:
- Flour milling – low-temperature food processing environments
- Furniture manufacturing – sawdust and fiber extraction systems
- Cement manufacturing – high-temperature cement kiln dust

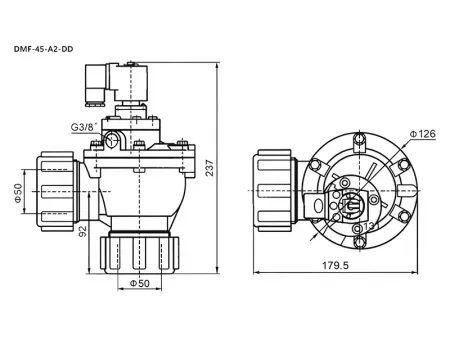

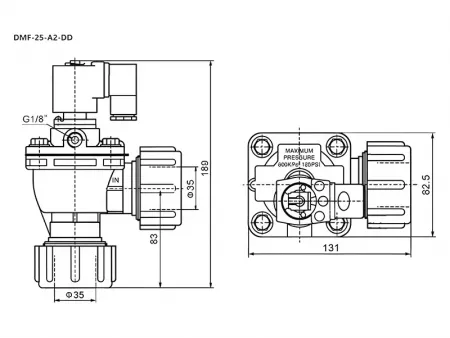

| Model | | |
| Operating pressure | 0.3–0.8MPa | 0.3–0.8MPa |
| Fluid temperature | -5℃ to 55℃ | -5℃ to 55℃ |
| Relative humidity | <85% | <85% |
| Working media | Clean air | Clean air |
| Voltage | AC110V/AC220V/DC24V | AC110V/AC220V/DC24V |
| Diaphragm life/protection class | Over 1 million cycles/IP65 | Over 1 million cycles/IP65 |
| Orifice | Ø25 | Ø40 |
| Connection port | Ø35 | Ø50 |
Yes, the DMF-Z series is designed for a dust removal system, providing stable pulse-jet cleaning performance with a service life exceeding 1 million cycles.
The standard protection level is IP65, and an optional IP67 waterproof housing is available for heavy rain protection of outdoor installation.
