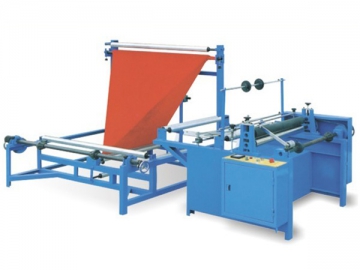

CP-1400FD, CP-1600FD Film Rewinding Machine
Request a Quote
View All: http://cwbagmachinery.com
The plastic film rewinding machine is a kind of auxiliary equipment for bag making machines. It mainly comes with the triangle folding device as well as rewinding device. The former is primarily used for folding a single film, and is suitable for all types of side sealing bag making units. The rewinding unit comes with the ultrasonic and EPC system. Together with the CW-RDL side sealing bag maker, this plastic film rewinding machine is a good solution to OPP header card bag which can pack stationery, socks, clothes, etc.
Technical Parameters| Model | ||
| Width of Jumbo Roll | 1200mm | 1600mm |
| Diameter of Jumbo Roll | Φ 650mm | Φ 650mm |
| Set Linear Speed | 90m/min | 90m/min |
| Total Power | 1.5kW | 2.5kW |
| Equipment Weight | 850kg | 1050kg |
| Equipment Dimension | 2400×1500 × 1500mm | 2800×1900×1700mm |
Related Names
Triangle Folding Machine | Plastic Film Folding Machine
