Tablet Press Machine, ZP252
Request a Quote
Tablet press without handwheel
It is a type of small output tablet press machine mainly suitable for use in R&D laboratories, which can be used for producing round or irregular tablets either single layer or double layers.
Specifications
| Model | ZP18 | ZP22 | ZP26 |
| Number of stations | 18 | 22 | 26 |
| Punches & Dies Standard | D | B | BB |
| Max. capacity (tablets/h) | 25920(single-layer) 17280(double-layer) | 31680(single-layer) 21120(double-layer) | 37440(single-layer) 24960(double-layer) |
| Max. main pressure(KN) | 60 | ||
| Max. pre-pressure (KN) | 10 | ||
| Max. diameter of tablet (mm) | 25 | 18 | 13 |
| Max. thickness of tablet (mm) | 6-7 | ||
| Max. filling depth (mm) | 18 | ||
| Max. Rotating speed (rpm) | 24 (single-layer tablet) 16(double-layer tablet) | ||
| Power of main motor (kW) | 3 | ||
| Overall dimensions (mm) | 1000*1160*1828 | ||
| Weight (Kg) | 1000 | ||
Main Features
- All parameters can be easily adjusted by the touch screen;
- Automatic sampling function for the first layer tablet;
- Meets GMP requirement;
- Double impeller forced feeder for single layer tablets, single impeller forced feeder for double layer tablets;
- Frequency control system adopted for main motor and feeding motor;

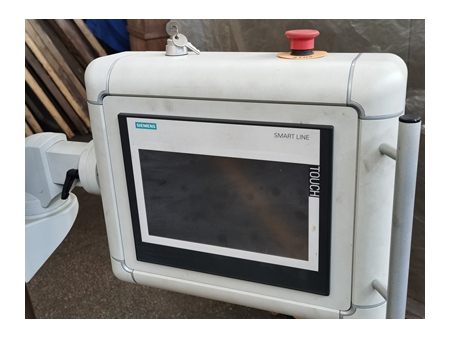

- 10’’ Touch Screen

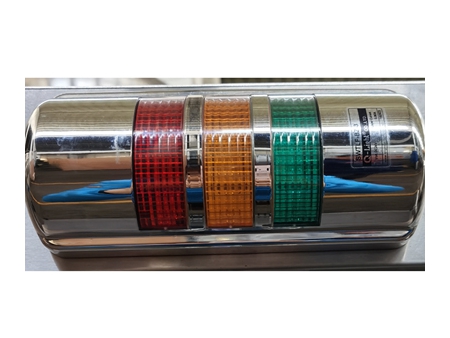

- Alarm System

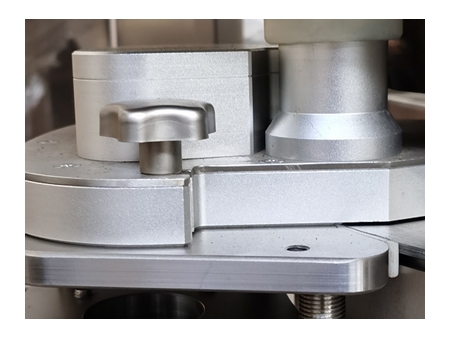

- Force Feeder (Left)

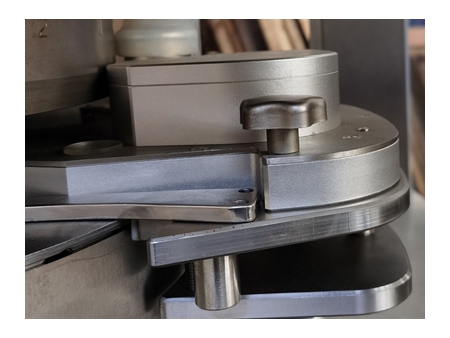

- Force Feeder (Right)

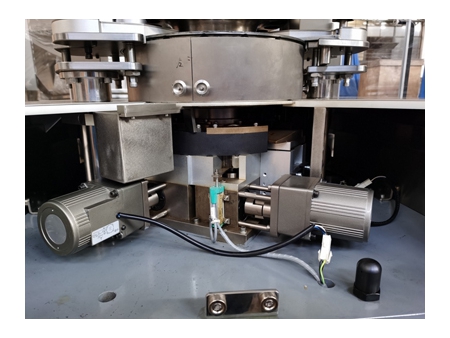

- The thickness (filling)and hardness(pressure) is automatically controlled

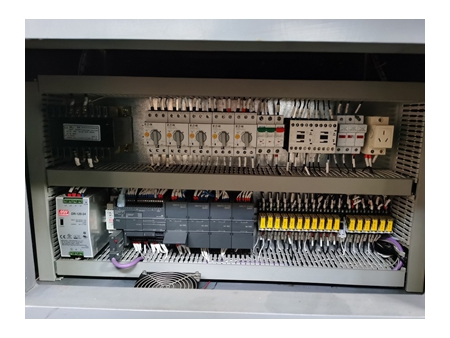

- Electrical Parts

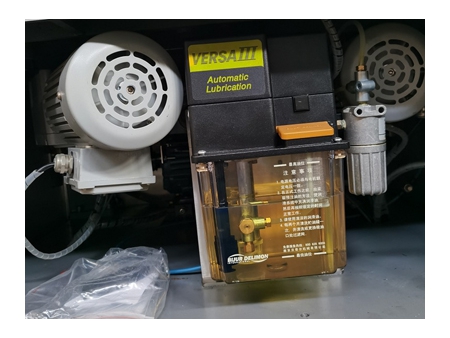

- Automatic Lubrcation System

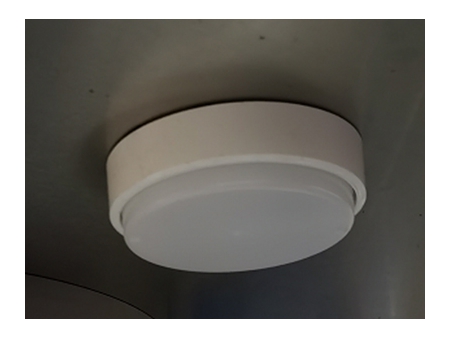

- LED lamp is set up inside of machine

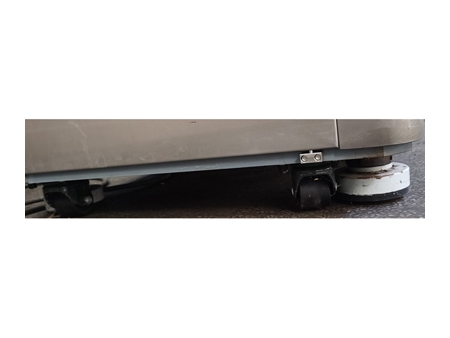

- With moving wheel and Crash Pad

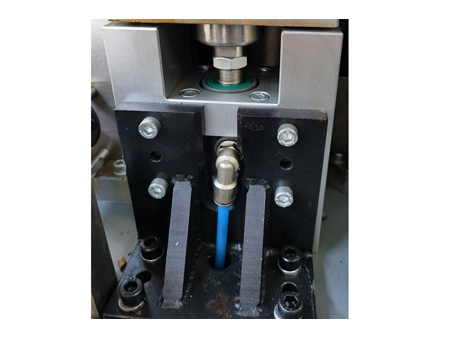

- Air Cylinder for first-layer tablet

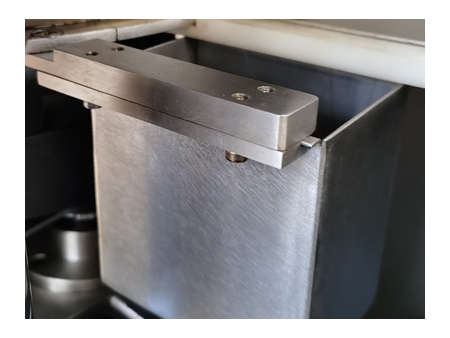

- First-Layer Tablet outlet tank

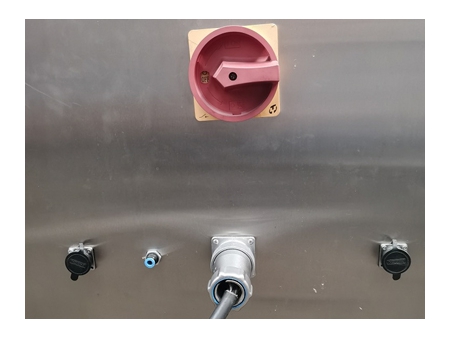

- Main Power , Dust Collector , Tablet-Deduster and compressed Air
