Floor-Mount Network Server Cabinet
Request a Quote
Electrical Enclosures
CBPC Series

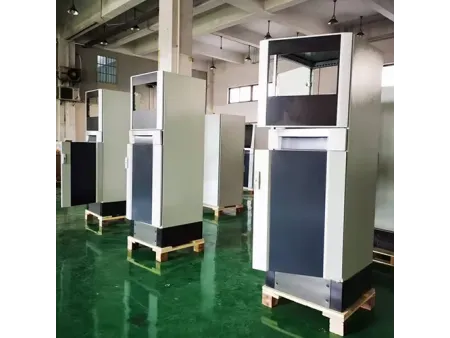

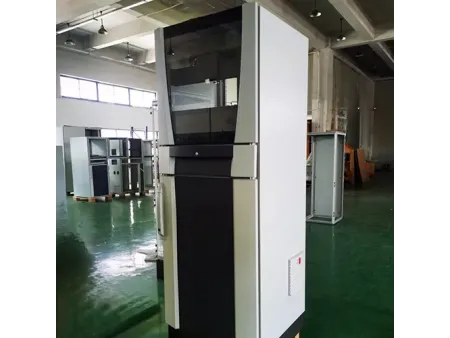

The flour-mount network server cabinet is built from cold-rolled steel with a reinforced structure that provides excellent rigidity and stability. It effectively shields internal PC equipment from external electromagnetic interference, ensuring reliable system operation.
The cabinet door is equipped with a secure locking mechanism to prevent unauthorized access, maintaining both data security and equipment integrity.
This cabinet is suitable for use in offices, industrial control centers, and data rooms, where it provides dependable housing for servers and network equipment.
Features
- The monitoring area is equipped with non-reflective safety glass, ensuring both visibility and operational safety.
- The lower front cabinet door features a luxury handle lock, while the maintenance door uses a standard flat lock, combining functionality with ergonomic design.
- Includes a keyboard drawer (optional mouse tray or touchpad) for convenient operation.
General specifications
- Material: Cold-rolled steel and aluminum alloy profiles, with optional stainless steel 304/316.
- Surface Treatment: Phosphated primer with powder-coated exterior, color RAL7035; decorative strips in RAL5018 with horizontal texture; shelves in the same color as the cabinet.
- Protection Level: IP54.
- Configuration: Cabinet body, rear door panel, upper front glass door, lower front steel door, keyboard drawer, sealing strip, shelves, door locks, and optional casters.
- Thickness: Frame 1.5 mm, door panel 2.0 mm.
| Model | H | W | D |
| | 1600 | 600 | 600 |
| | 1600 | 600 | 700 |
| | 1600 | 600 | 800 |
| | 1600 | 800 | 600 |
| | 1600 | 800 | 700 |
| | 1800 | 600 | 600 |
| | 1800 | 600 | 700 |
| | 1800 | 600 | 800 |
| | 1800 | 800 | 600 |
| | 1800 | 800 | 700 |
