Hydraulic Linear Cylinder Manufacturer

Hydraulic Linear Cylinder

Request a Quote

View All: http://workholding-clamps.com/1-3-1-hydraulic-linear-cylinder.html

Push/Pull Cylinder

These hydraulic linear cylinders are used in CNC machining operations for securely positioning and firmly hold workpieces in place. The operating pressure ranges from 2MPa to 14MPa.

Specifications

Operating pressure: 2MPa-14MPa
Stroke: 5mm-100mm
Inner diameter: Ø20, Ø24, Ø25, Ø26, Ø32, Ø35, Ø40, Ø45, Ø50, Ø55, Ø63, Ø68, Ø80
Mounting style: top flange/axial connection

Features

Optional piston rod ends
Thin type hydraulic clamping cylinder has two options of piston rod end, i.e. internal thread and external thread. Top flange hydraulic clamping cylinder has three options of piston rod end, i.e. internal thread with anti-rotation rod eye, external thread and piston rod eye.
- Internal thread
- External thread
- Internal thread with anti-rotation rod eye
- External thread
- Piston rod eye
High sealing performance
High quality seal is used to efficiently prevent coolant and cutting chips from entering inside the clamping cylinder.
Space saving
The compact design of this workholding cylinder makes it space efficient and ideal for applications where installation space is limited.

Download Detailed Information & Specifications Here

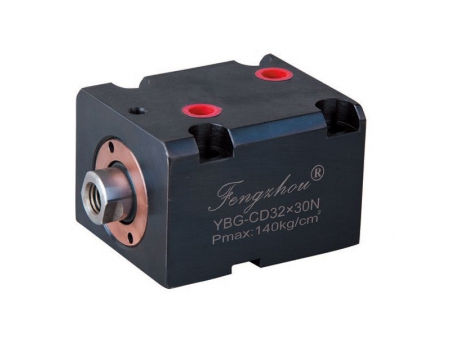

Hydraulic Linear Push/Pull Cylinder

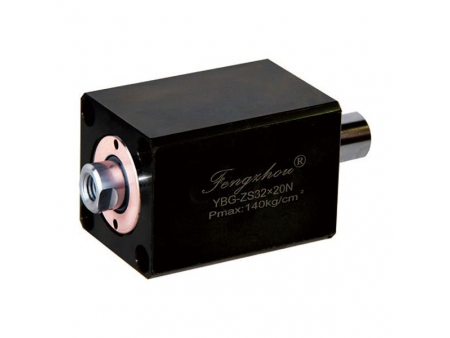

Two-Axis Hydraulic Linear Cylinder

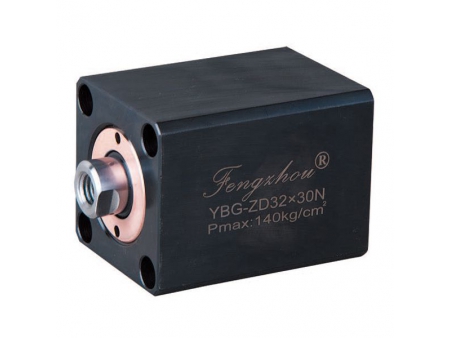

Hydraulic Linear Cylinder in Axial Direction

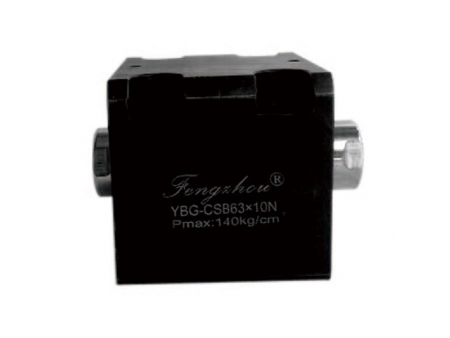

Side-Mounting Hydraulic Block Cylinder (with external pipe connection)

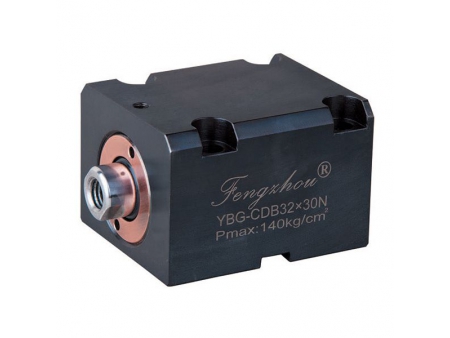

Side-Mounting Hydraulic Block Cylinder (with hydraulic circuit)
Side-Mounting Two-Axis Hydraulic Block Cylinder

Tags:
hydraulic workholding products
positive clamping cylinders
work clamping systems
hydraulic pull cylinder
