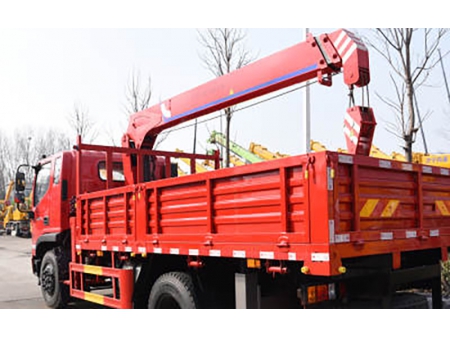

Our SST5S4 5-ton boom truck utilizes Foton truck chassis and Yunnei 130HP engine, the maximum lifting height can reach 13m. The boom truck is configured with a telescopic boom supported by horizontal cable and 360-degree rotating platform, allowing for easy hoisting and placement of materials or cargos on the jobsite.


Features
  • The telescopic boom is characterized by a pentagonal cross section, providing a greater resistance to load-induced deflection;
  • Equipped with over-winding protection system to avoid safety hazards caused by breakage of wire rope;
  • Integrated slewing mechanism;
Specifications
Max. loading capacity
5000kg
Max. lifting height
13m
Outrigger span
4.4m
Boom
4 sections (3m per section)
Main boom length
3.8m-11.5m
Max. lifting moment
12.5t.m
Boom raising angle
0-75°
Slewing angle
360°
Slewing speed
2.5r/min
