Application of Equipment and Operating Principle

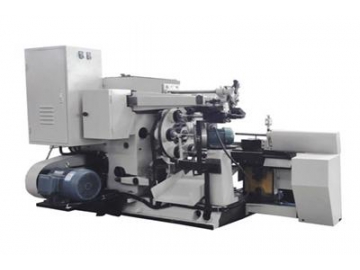

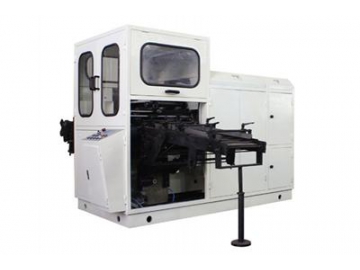

The LWD01 aluminum tube making trimmer is professionally designed equipment used in aluminum tube machine lines. The tube trimmers are designed to trim and form the tube. The LWD01 aluminum tube making trimmer is a necessary equipment in daily chemical, medical and other metal tube automatic machine lines. The LWD01 aluminum tube making trimmer can be connected with other equipment into the pipeline or be used by itself. The main process of this machine includes cut the tubes head, press the screw thread of the tube, cut the excess part of the tubes tail and polish the tubes shoulder.

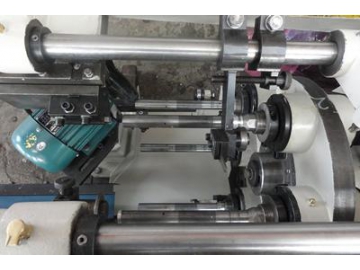

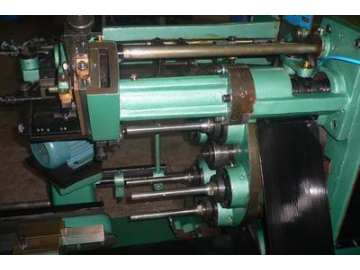

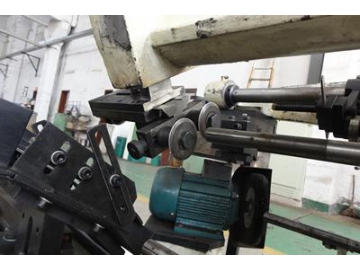

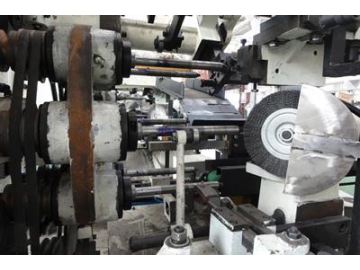

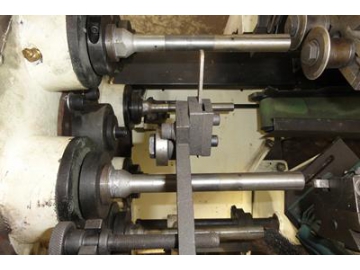

The LWD01 aluminum tube making trimmer inserts the billet tube into the central spindle through the charging groove. After the aluminum tube is covered with the central spindle, the central spindle fixes the aluminum tube on the central spindle. Then the central spindle begins to spin at high speed and drives the aluminum tube to rotate. The tail of the aluminum tube is cut with a tail cutter during rotation so the length of the tube is reached the requirements. The nozzle is cut by the front cutter to form the neck with the certain height. At the same time, the thread cutter is rolled on the neck of the tube to produce threads of required specifications. Next, the brush disk is driven by the motor to polish the head and shoulder of the tube to remove burrs. The tail bearing flattens the notch left by the tail cutter to make the tube more straight and easy to take off. In order to improve the quality of aluminum tube and inner coating, expansion central spindle is generally be used now.

The last station is the unloading station. The stripper plate is controlled by the cam, and the tube blank after processing is pushed down the mandrel, and then enters the charging groove through the guide of the belt. The charging groove can be connected with the conveyor chain of the annealing furnace to enter the next annealing process.

• The LWD01 aluminum tube making trimmer uses an indexer, which is highly accurate, low noise and wear resistant.
• The LWD01 aluminum tube making trimmer can separate the tail of the tube automatically.

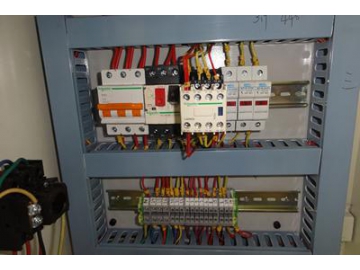

• The LWD01 aluminum tube making trimmer is controlled by Siemens PLC. The text displayer displays real-time production speed and other information.
• The LWD01 aluminum tube making trimmer uses variable-frequency drive to regulate speed, which is convenient and accurate. The central spindle adopts a quick change structure and the change of the specification is quick and convenient. The central spindle disk and cam are processed by CNC equipment, which improves the stability during production of the whole machine.
