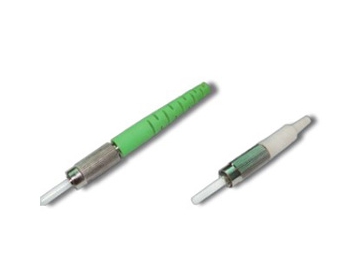

Fiber Patch Cord with DIN Connector, DIN 47256, Single Mode and Multimode
Request a Quote
Application
Specifications- CATV
- Telecommunication networks
- Active device termination
- Metro
- Metro
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installations
- Wide Area Networks (WANs)
| Item | Single mode | Multimode |
| Insertion Loss | Typical ≤0.2dB, Maximum≤0.3dB | ≤0.25dB |
| Return Loss | ≥50 dB (PC) ≥60 dB (APC) | / |
| Repeatability | ≤0.1 | ≤0.1 |
| Durability | ≤0.2 dB typical change, 500 matings | ≤0.2 dB typical change, 500 matings |
| Interchangeability | ≤0.2dB | ≤0.2dB |
| Tensile strength | >70N | >70N |
| Operating Temperature | -40 to 85°C | 40 to 85°C |
