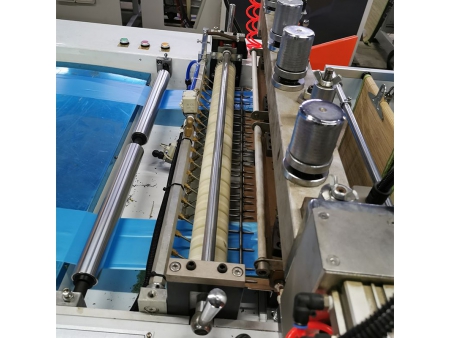

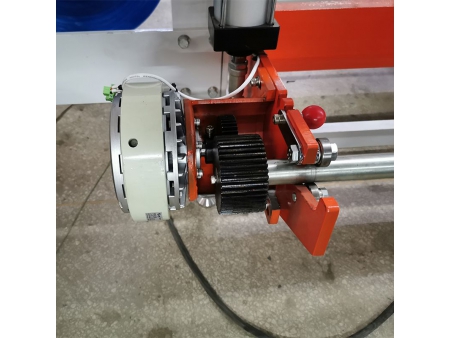

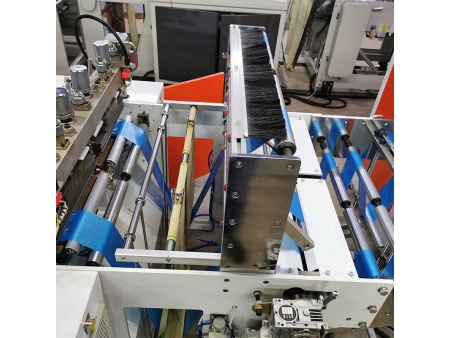

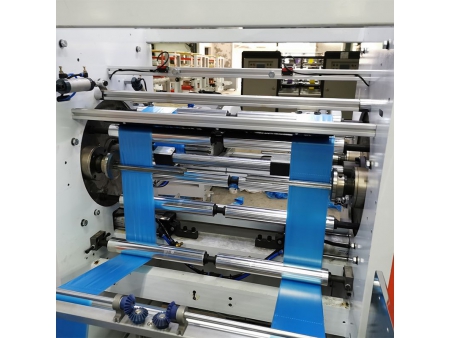

This automatic double line garbage bag on roll making machine is particularly suitable for producing household and small-sized garbage bags. It has a feature enabling it to fold the film as three or four layers. Furthermore, this plastic bag making machine can automatically rewind the garbage bags, and operates without the use of a paper core.

PLC control makes it simple for employees to manage the entire machine.
This garbage bag making machine is outfitted with top-of-the-line components, such as Delta inverter, Omron temperature controller, and Schneider electric parts, ensuring high-quality construction.

Technical Parameters
Model TPGB-300X2
Unwinder roll width (double line) 180-500 mm
Final roll width of bag (double line) 80-250 mm
length of bag 450-1200 mm
Bag thickness 0.01-0.05 mm
Bag making speed 80 m/min*2 lines
Air pressure 5.5 HP
Total power 12.5 kW
Weight 2400 kg
Dimension 5000*2100*1500 mm
